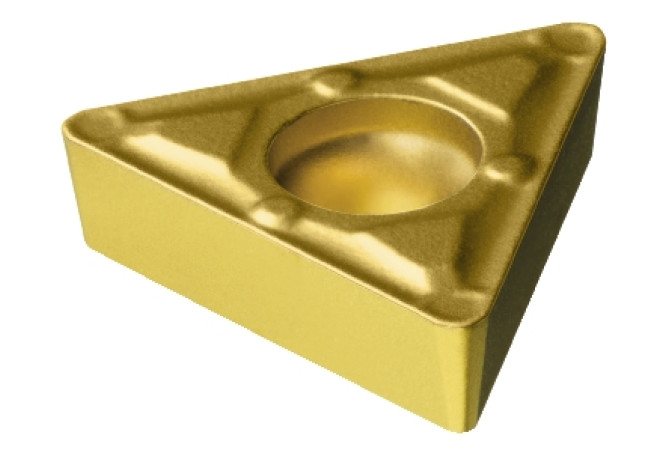

TCMX 11 03 04-WF 2015
TCMX 11 03 04-WF 2015
Артикул:
5752961
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
7 Degree
BN (Face land width)
0.07 mm
BS (Wiper edge length)
0.6 mm
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
WF
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
2.8 mm
Delivery state valid from
12/1/2023
DIN
TC1103043N

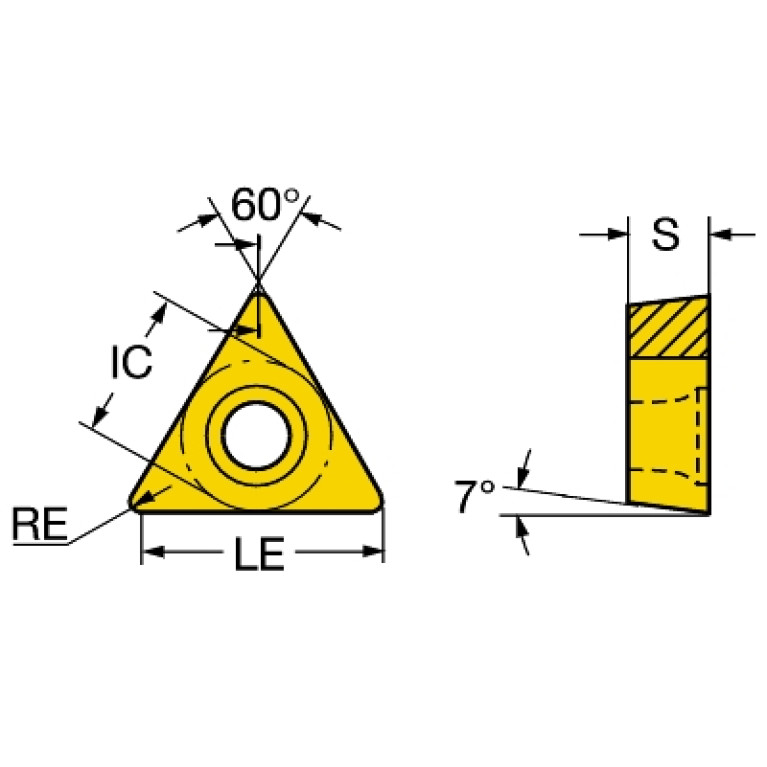

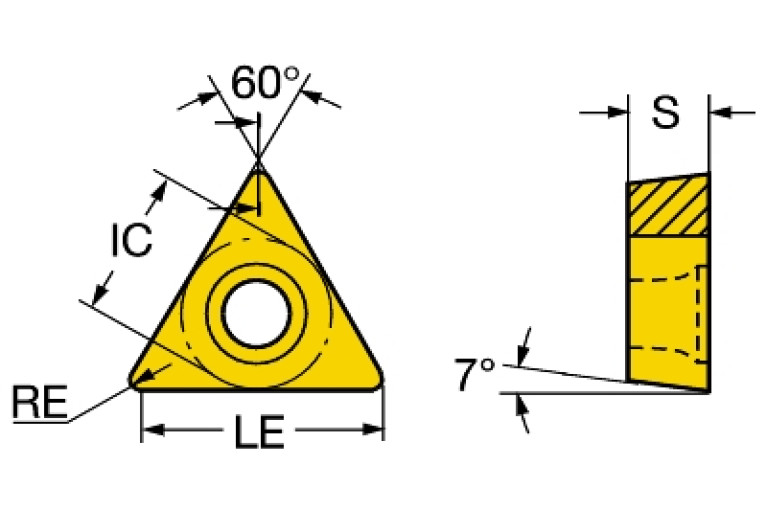

EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
2015
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
6.35 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TC1103043NB$$04
KRINS (Cutting edge angle major)
91 Degree
L (Cutting edge length)
10.999 mm
LE (Cutting edge effective length)
10.34 mm
LOC-03 ISO
ISO$TC1103043NB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TC1103043N
Materials
M
MIID (Master insert identification)
TCMX110304 2015
NOI (Insert index count)
3
RE (Corner radius)
0.397 mm
S (Insert thickness)
3.175 mm
S1 (Insert thickness total)
3.175 mm
STDDES (Standard designation)
TCMX110304
STDDESAnsi (Standard designation ANSI)
TCMX221
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.002 kg
