Главная Инструменты 201-01 - Triangle insert TCMX 11 03 02-WF 1125

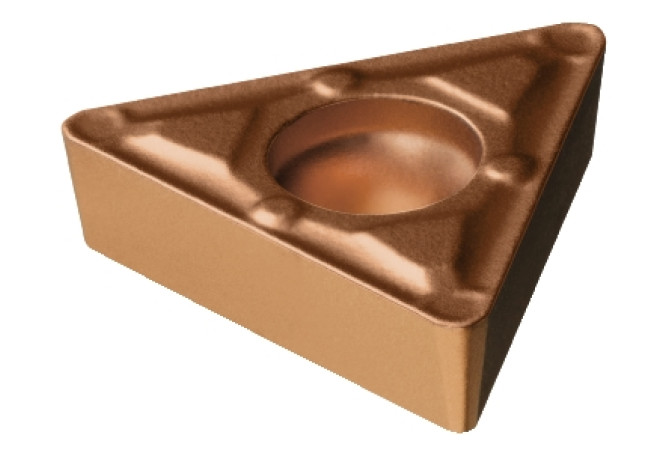

TCMX 11 03 02-WF 1125

Артикул: 5752962

В наличии

0 ₽

В корзину

Описание

Характеристики

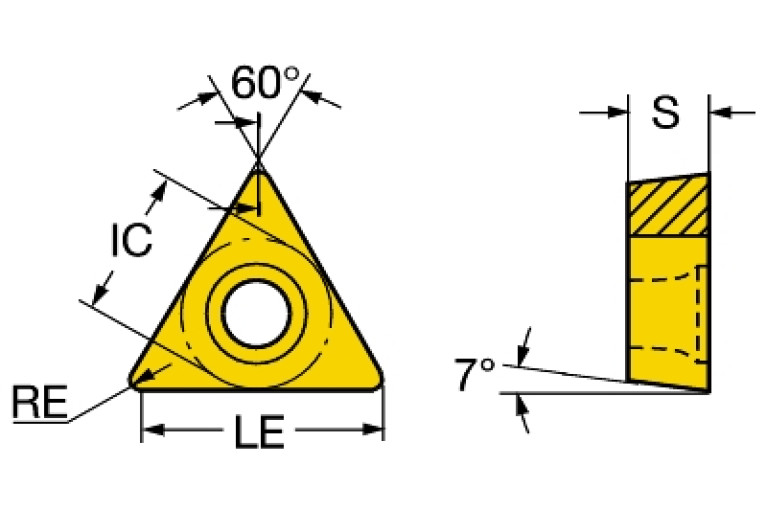

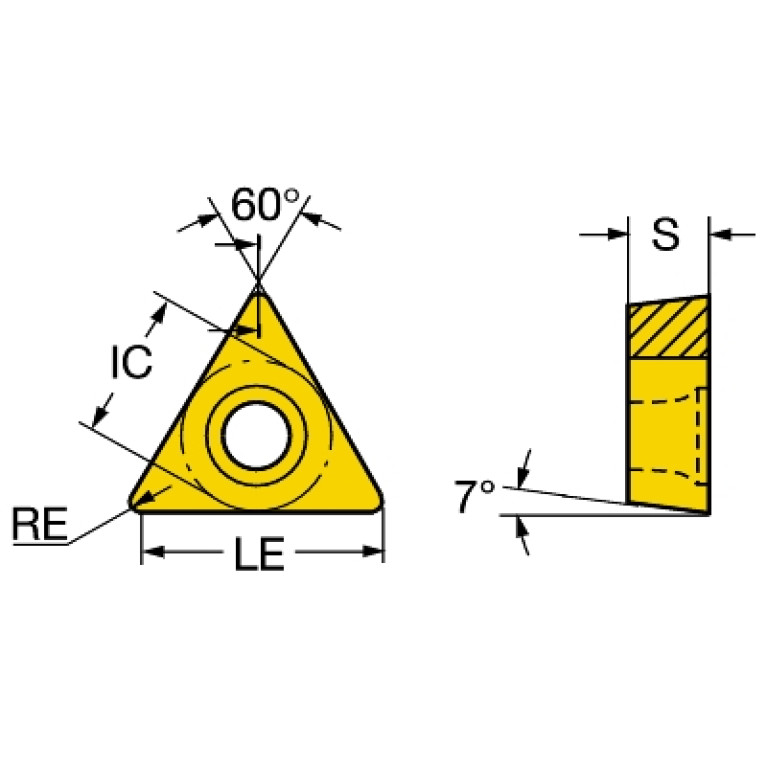

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.07 mm

BS (Wiper edge length)

0.35 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiAlN

D1 (Fixing hole diameter)

2.8 mm

Delivery state valid from

12/1/2023

DIN

TC1103023N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1125

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC1103023NB$$02

KRINS (Cutting edge angle major)

91 Degree

L (Cutting edge length)

10.999 mm

LE (Cutting edge effective length)

10.54 mm

LOC-03 ISO

ISO$TC1103023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1103023N

Materials

P,M,N,S

MIID (Master insert identification)

TCMX110302 1125

NOI (Insert index count)

RE (Corner radius)

0.2 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TCMX110302

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
