Главная Инструменты 201-01 - Triangle insert TCMT 22 04 12-PR 4425

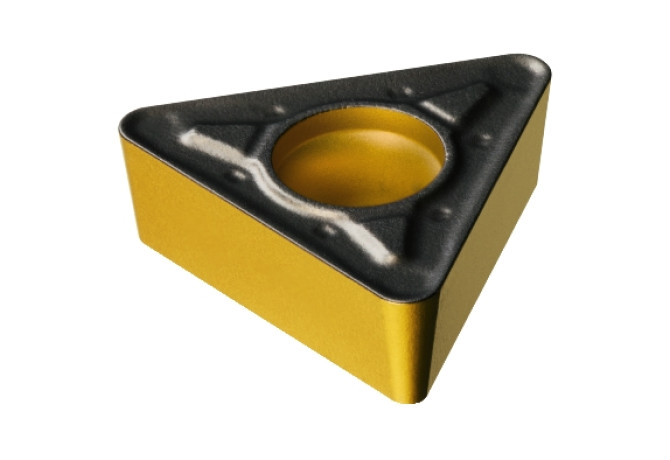

TCMT 22 04 12-PR 4425

Артикул: 7861263

В наличии

0 ₽

В корзину

Описание

Характеристики

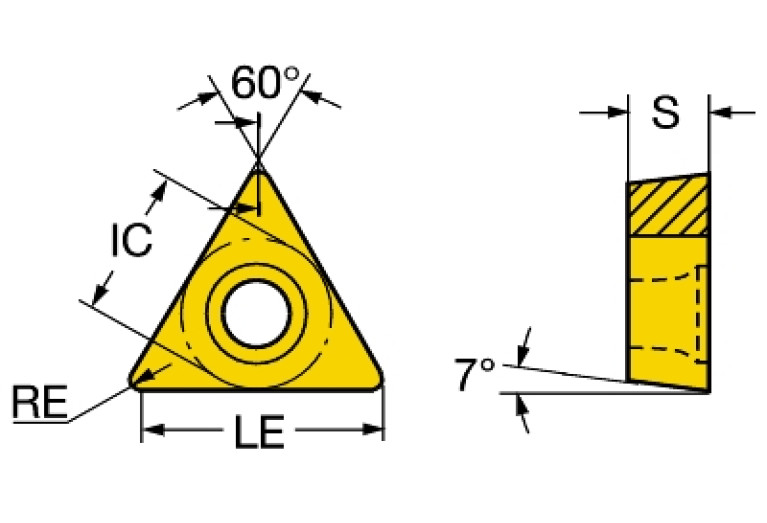

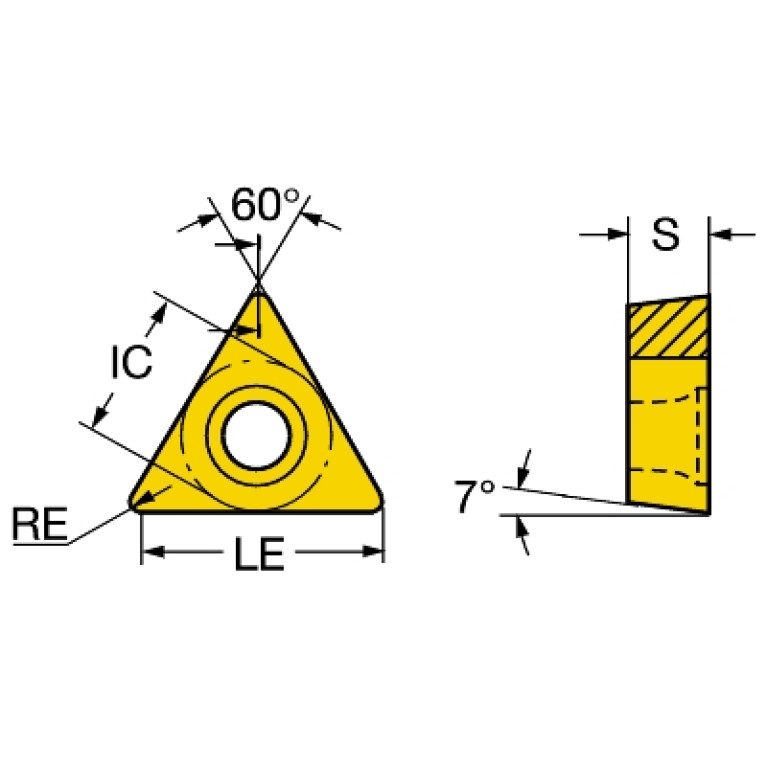

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

5.5 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TC2204123N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

4425

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC2204123NB$$12

L (Cutting edge length)

21.997 mm

LE (Cutting edge effective length)

20.797 mm

LOC-03 ISO

ISO$TC2204123NB$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC2204123N

Materials

P,K

MIID (Master insert identification)

TCMT220412 4425

NOI (Insert index count)

RE (Corner radius)

1.191 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

TCMT220412

STDDESAnsi (Standard designation ANSI)

TCMT433

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.01 kg
