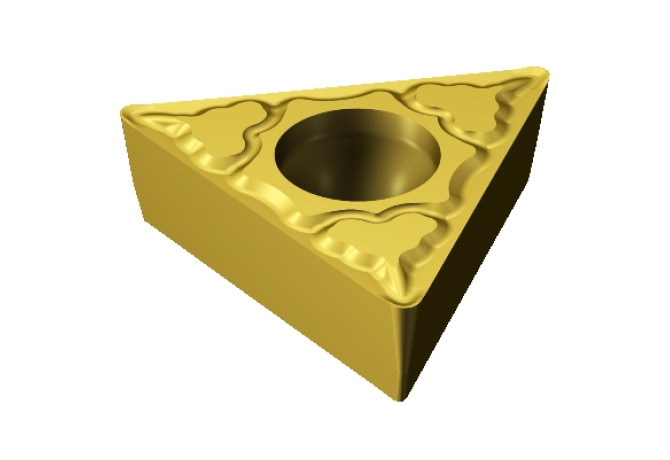

TCMT 22 04 08-MM 2035
TCMT 22 04 08-MM 2035
Артикул:
5752987
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
7 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
MM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN+TiN
D1 (Fixing hole diameter)
5.5 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
TC2204083N

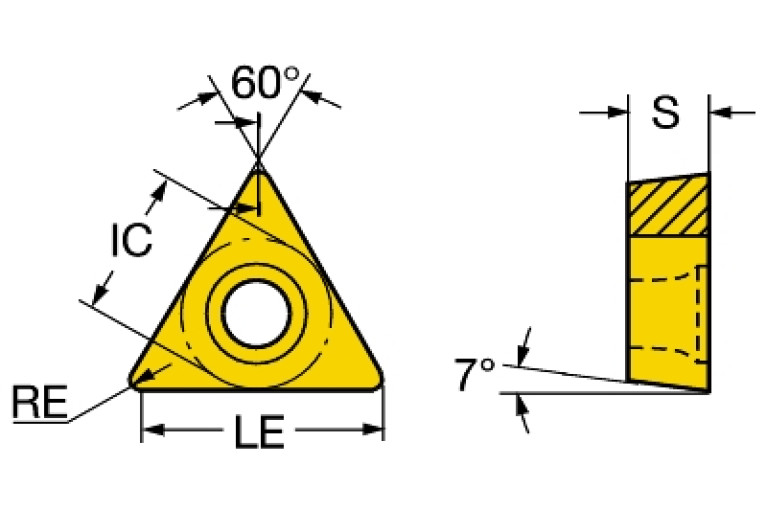

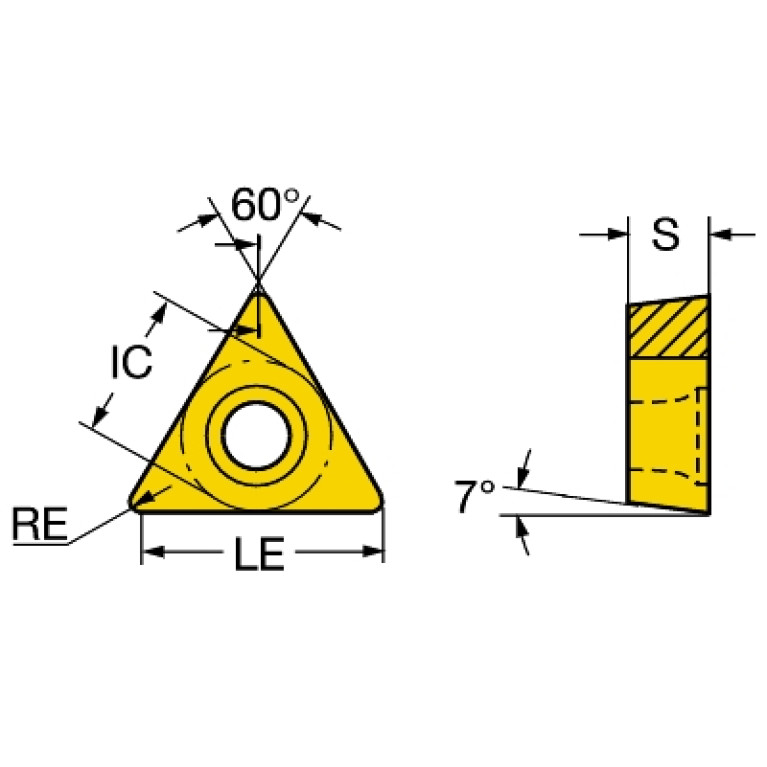

EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
2035
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TC2204083NB$$08
L (Cutting edge length)
21.997 mm
LE (Cutting edge effective length)
21.197 mm
LOC-03 ISO
ISO$TC2204083NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TC2204083N
Materials
M
MIID (Master insert identification)
TCMT220408 2035
NOI (Insert index count)
3
RE (Corner radius)
0.794 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
STDDES (Standard designation)
TCMT220408
STDDESAnsi (Standard designation ANSI)
TCMT432
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.012 kg
