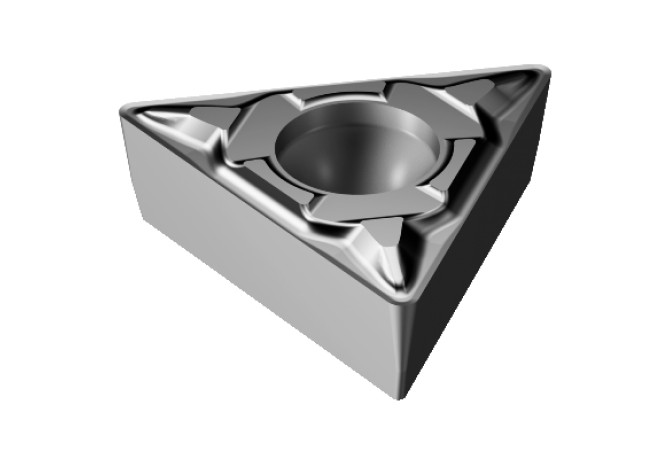

Главная Инструменты 201-01 - Triangle insert TCMT 09 02 02-MF 1105

TCMT 09 02 02-MF 1105

Артикул: 5752020

В наличии

0 ₽

В корзину

Описание

Характеристики

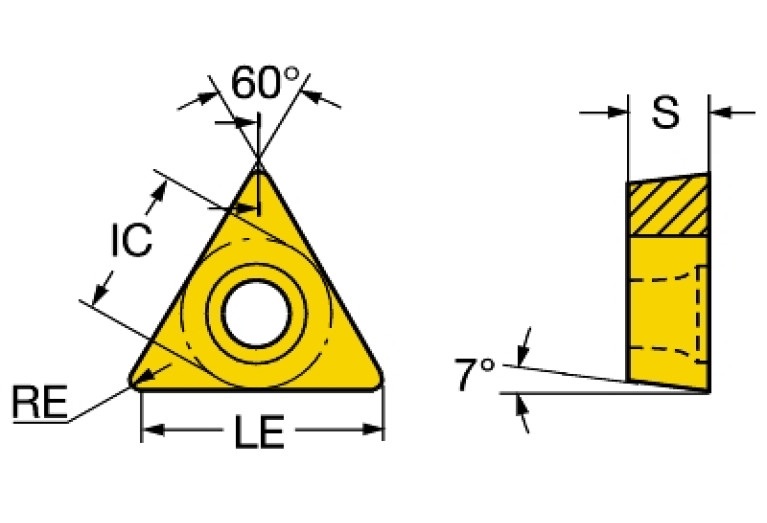

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN

D1 (Fixing hole diameter)

2.5 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TC0902023N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1105

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

5.556 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC0902023NB$$02

L (Cutting edge length)

9.624 mm

LE (Cutting edge effective length)

9.17 mm

LOC-03 ISO

ISO$TC0902023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC0902023N

Materials

P,M,S

MIID (Master insert identification)

TCMT090202 1105

NOI (Insert index count)

RE (Corner radius)

0.2 mm

S (Insert thickness)

2.381 mm

S1 (Insert thickness total)

2.381 mm

STDDES (Standard designation)

TCMT090202

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
