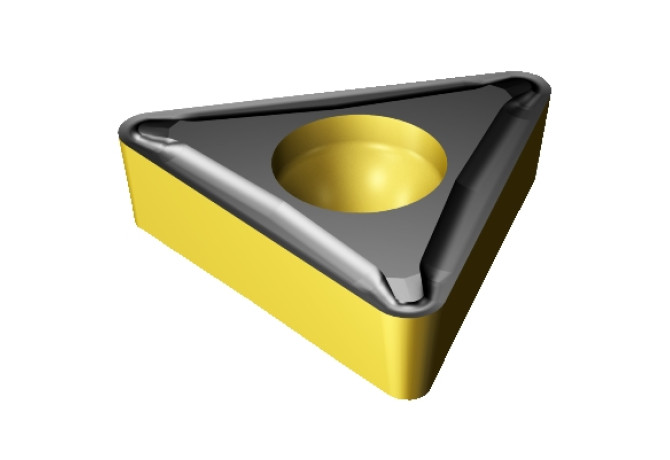

TCMT 06 T1 04-UF 4315

Артикул: 6612444

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

2.2 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

TC06T1043N

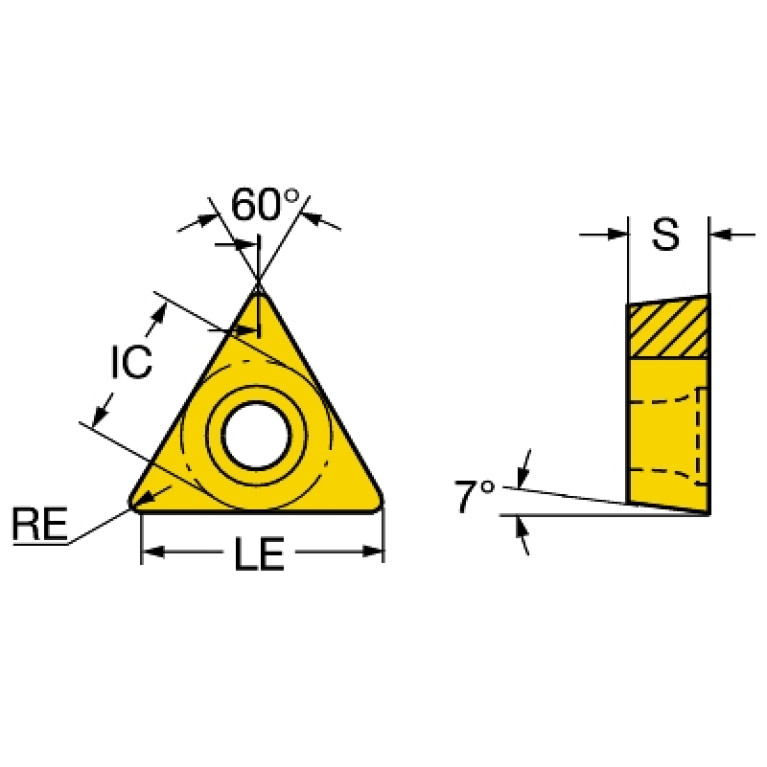

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

4315

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

3.969 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC06T1043NB$$04

L (Cutting edge length)

6.874 mm

LE (Cutting edge effective length)

6.22 mm

LOC-03 ISO

ISO$TC06T1043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC06T1043N

Materials

P,K

MIID (Master insert identification)

TCMT06T104 4315

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

1.98 mm

S1 (Insert thickness total)

1.98 mm

STDDES (Standard designation)

TCMT06T104

STDDESAnsi (Standard designation ANSI)

TCMT1.21.21

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available
