Главная Инструменты 201-01 - Triangle insert TCMT 06 T1 02-PF 4425

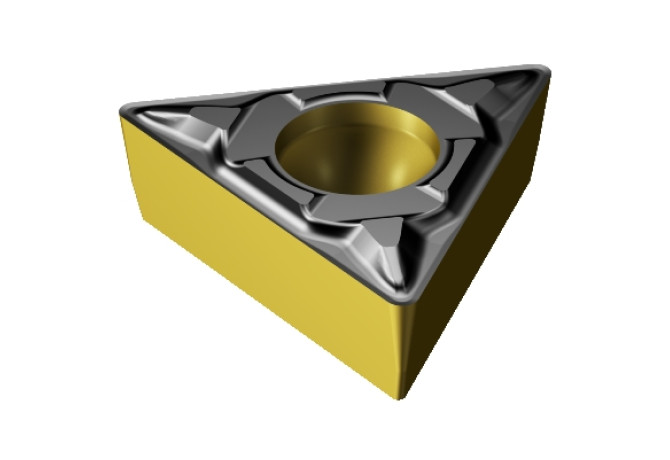

TCMT 06 T1 02-PF 4425

Артикул: 7861038

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

2.2 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TC06T1023N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

4425

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

3.969 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC06T1023NB$$02

L (Cutting edge length)

6.874 mm

LE (Cutting edge effective length)

6.42 mm

LOC-03 ISO

ISO$TC06T1023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC06T1023N

Materials

P,K

MIID (Master insert identification)

TCMT06T102 4425

NOI (Insert index count)

RE (Corner radius)

0.2 mm

S (Insert thickness)

1.98 mm

S1 (Insert thickness total)

1.98 mm

STDDES (Standard designation)

TCMT06T102

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
