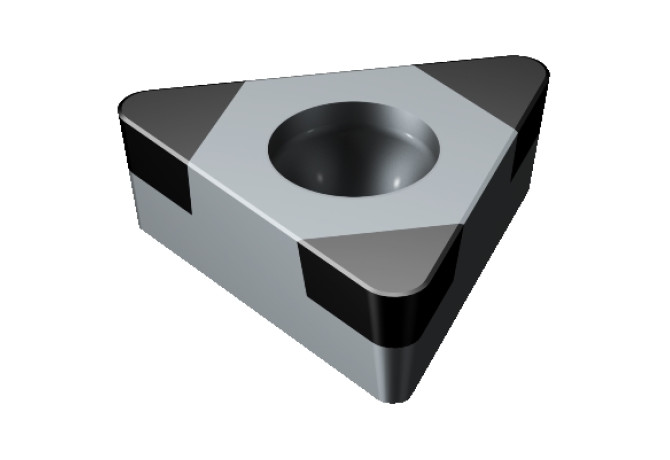

Главная Инструменты 201-01 - Triangle insert TCGW110308S01020F 7025

TCGW110308S01020F 7025

Артикул: 5751853

В наличии

0 ₽

В корзину

Описание

Характеристики

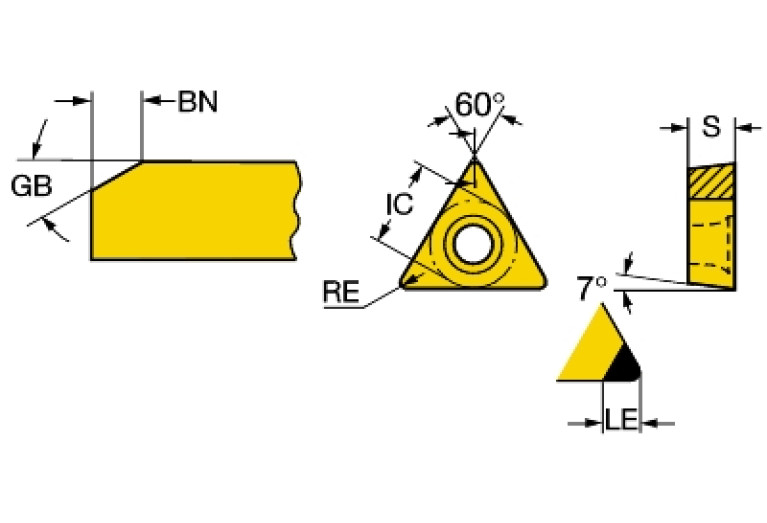

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

S - Chamfered and rounded

D1 (Fixing hole diameter)

2.8 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TC1103083N

EPSR (Insert included angle)

60 Degree

GAN (Insert rake angle)

0 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

7025

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC1103083NA$$08

L (Cutting edge length)

10.999 mm

LE (Cutting edge effective length)

2.5 mm

LOC-03 ISO

ISO$TC1103083NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1103083N

Materials

MIID (Master insert identification)

TCGW110308 7025

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TCGW110308

STDDESAnsi (Standard designation ANSI)

TCGW222

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
