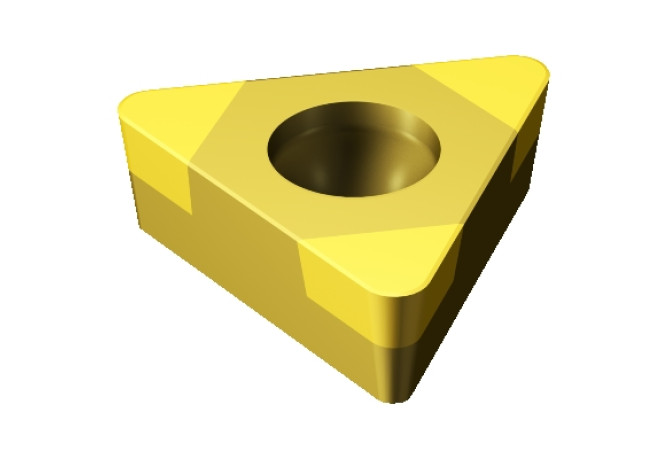

Главная Инструменты 201-01 - Triangle insert TCGW110208S01530F 7015

TCGW110208S01530F 7015

Артикул: 5772705

В наличии

0 ₽

В корзину

Описание

Характеристики

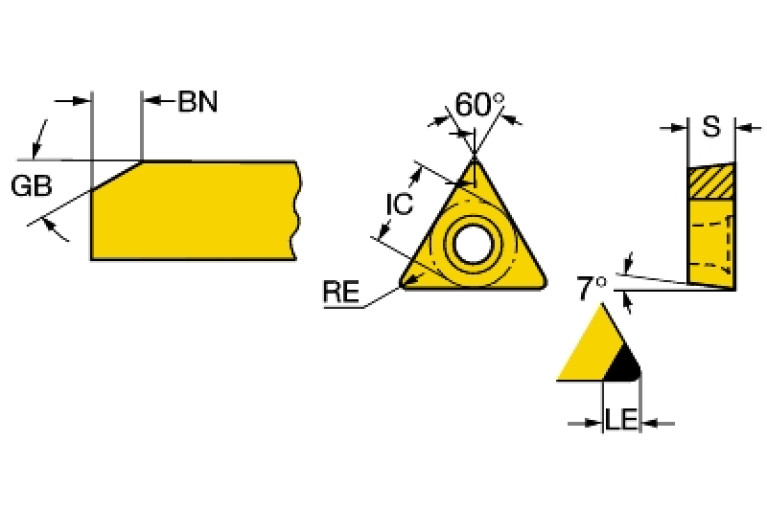

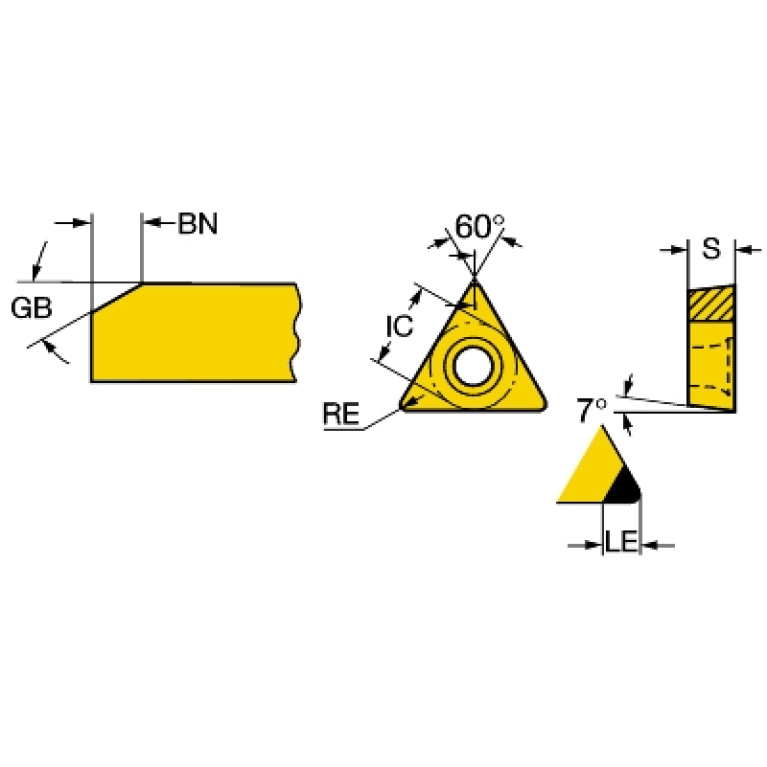

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.15 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

S - Chamfered and rounded

COATN (Coating)

PVD TiN

D1 (Fixing hole diameter)

2.8 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

TC1102083N

EPSR (Insert included angle)

60 Degree

GB (Face land angle)

30 Degree

GRDMFG (Grade manufacturers designation)

7015

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC1102083NA$$08

L (Cutting edge length)

10.999 mm

LE (Cutting edge effective length)

2 mm

LOC-03 ISO

ISO$TC1102083NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102083N

Materials

MIID (Master insert identification)

TCGW110208 7015

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

2.381 mm

S1 (Insert thickness total)

2.381 mm

STDDES (Standard designation)

TCGW110208

STDDESAnsi (Standard designation ANSI)

TCGW21.52

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
