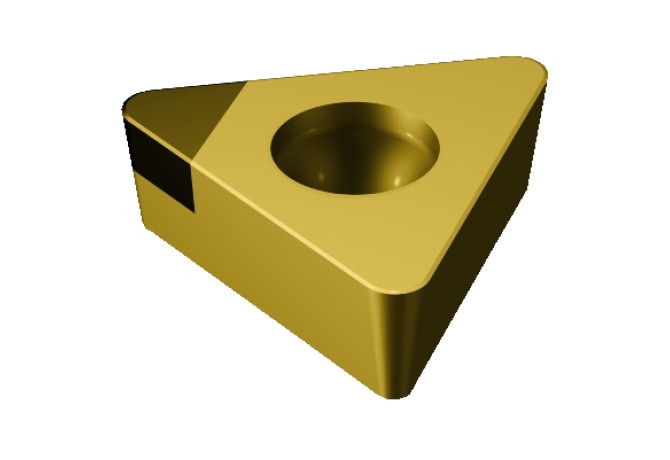

Главная Инструменты 201-01 - Triangle insert TCGW06T102S01020E 7115

TCGW06T102S01020E 7115

Артикул: 7106088

В наличии

0 ₽

В корзину

Описание

Характеристики

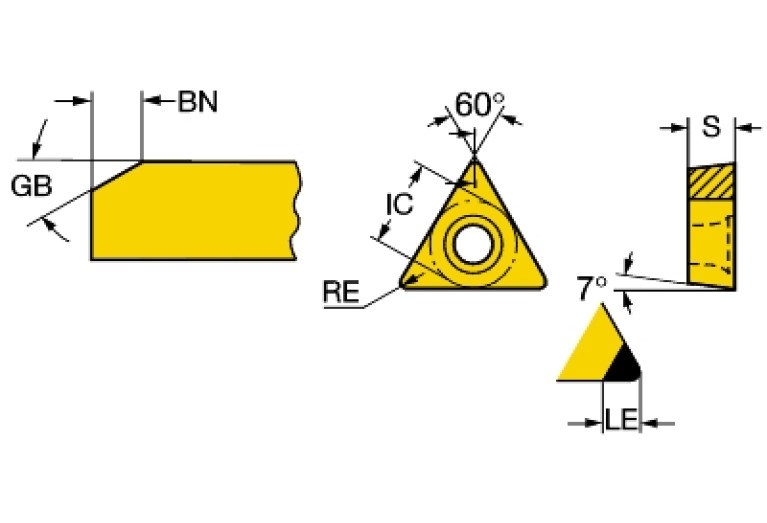

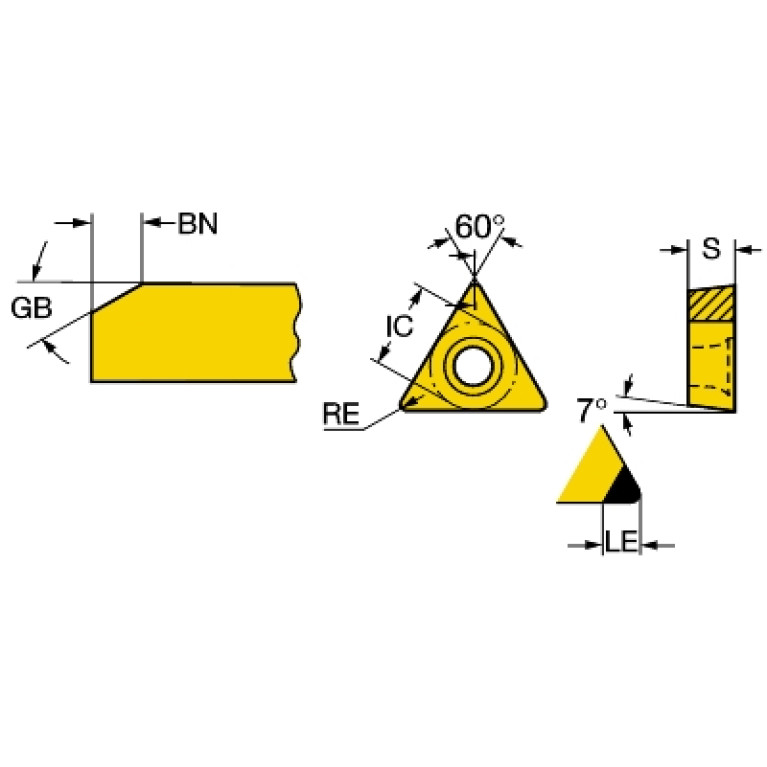

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

S - Chamfered and rounded

COATN (Coating)

PVD TiN

D1 (Fixing hole diameter)

2.2 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TC06T1023N

EPSR (Insert included angle)

60 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

7115

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

3.969 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC06T1023NA$$02

L (Cutting edge length)

6.874 mm

LE (Cutting edge effective length)

1.95 mm

LOC-03 ISO

ISO$TC06T1023NA$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC06T1023N

Materials

MIID (Master insert identification)

TCGW06T102 7115

NOI (Insert index count)

RE (Corner radius)

0.2 mm

S (Insert thickness)

1.98 mm

S1 (Insert thickness total)

1.98 mm

STDDES (Standard designation)

TCGW06T102

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available
