TCGT 09 02 04L-K 1125

Артикул: 5752081

В наличии

0 ₽

В корзину

Описание

Характеристики

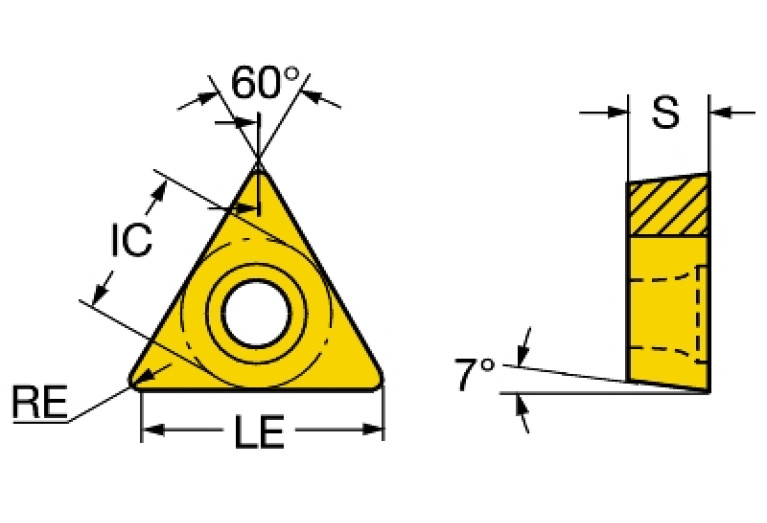

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

F - Sharpedged

COATN (Coating)

PVD TiAlN+TiAlN

D1 (Fixing hole diameter)

2.5 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TC0902043L

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1125

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

5.556 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

L - Left

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC0902043LB$$04

L (Cutting edge length)

9.624 mm

LE (Cutting edge effective length)

8.97 mm

LOC-03 ISO

ISO$TC0902043LB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC0902043L

Materials

P,M,N,S

MIID (Master insert identification)

TCGT090204 1125

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

2.381 mm

S1 (Insert thickness total)

2.381 mm

STDDES (Standard designation)

TCGT090204

STDDESAnsi (Standard designation ANSI)

TCGT1.81.51

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
