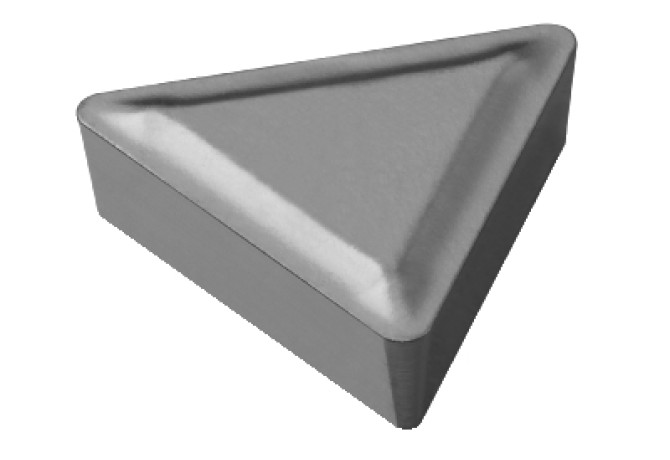

Главная Инструменты 201-01 - Triangle insert TCGR 06 01 04 5015

TCGR 06 01 04 5015

Артикул: 5751749

В наличии

0 ₽

В корзину

Описание

Характеристики

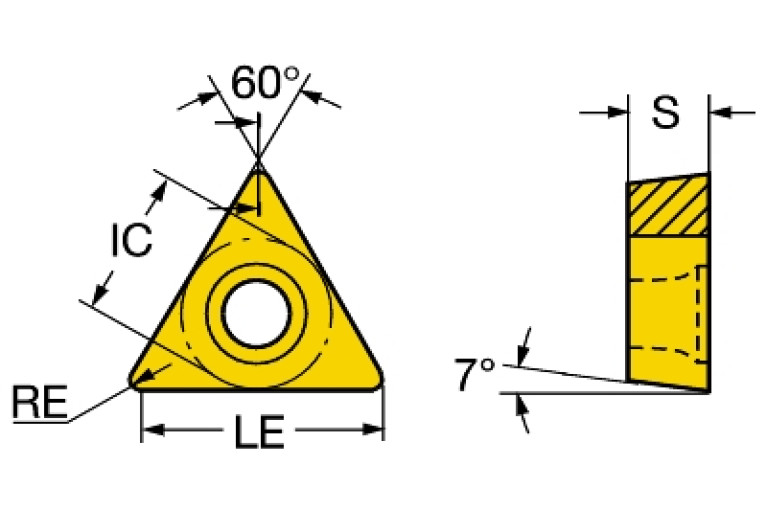

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

F - Sharpedged

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TC0601041N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

5015

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

3.969 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TC0601041NA$$04

L (Cutting edge length)

6.874 mm

LE (Cutting edge effective length)

6.22 mm

LOC-03 ISO

ISO$TC0601041NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC0601041N

Materials

P,K

MIID (Master insert identification)

TCGR060104 5015

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

1.588 mm

S1 (Insert thickness total)

1.588 mm

STDDES (Standard designation)

TCGR060104

STDDESAnsi (Standard designation ANSI)

TCGR1.211

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available
