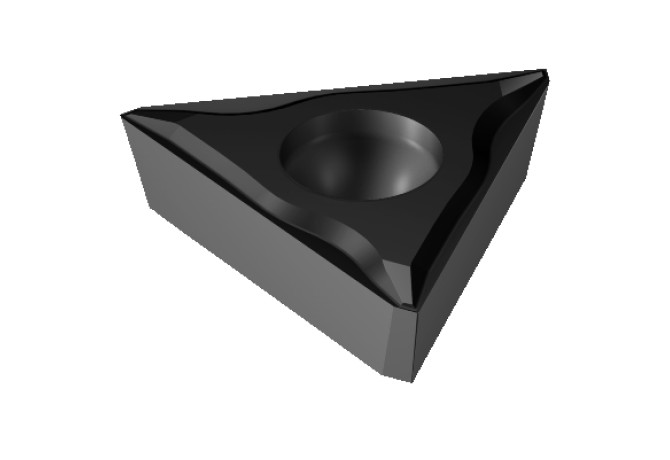

TCEX 09 02 01R-F 1105
TCEX 09 02 01R-F 1105
Артикул:
6075395
В наличии
0 ₽
Характеристики

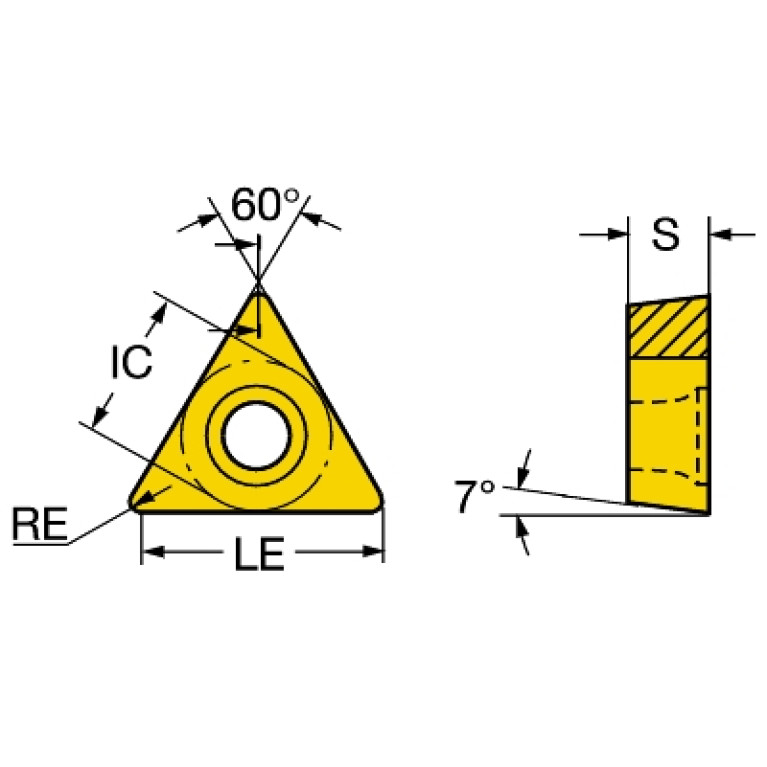

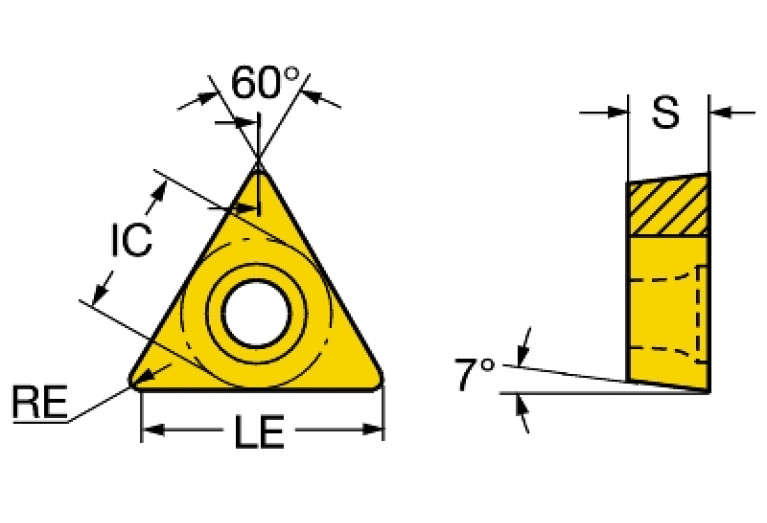

AN (Clearance angle major)
7 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
F
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
2.5 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
TC0902013R
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
1105
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
5.556 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TC0902013RB$$01
L (Cutting edge length)
9.624 mm
LE (Cutting edge effective length)
9.27 mm
LOC-03 ISO
ISO$TC0902013RB$$01
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TC0902013R
Materials
P,M,S
MIID (Master insert identification)
TCEX090201 1105
NOI (Insert index count)
3
RE (Corner radius)
0.1 mm
S (Insert thickness)
2.381 mm
S1 (Insert thickness total)
2.381 mm
STDDES (Standard designation)
TCEX090201
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
E
Working process
No working processes available
WT (Weight of item)
0.001 kg
