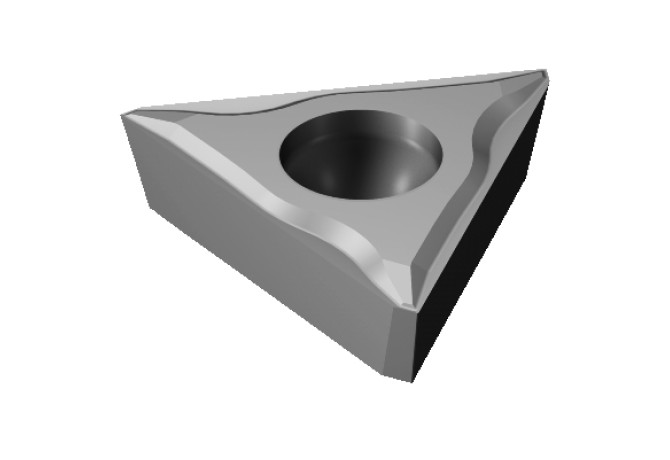

Главная Инструменты 201-01 - Triangle insert TCEX 05 01 01L-F 1205

TCEX 05 01 01L-F 1205

Артикул: 8432305

В наличии

0 ₽

В корзину

Описание

Характеристики

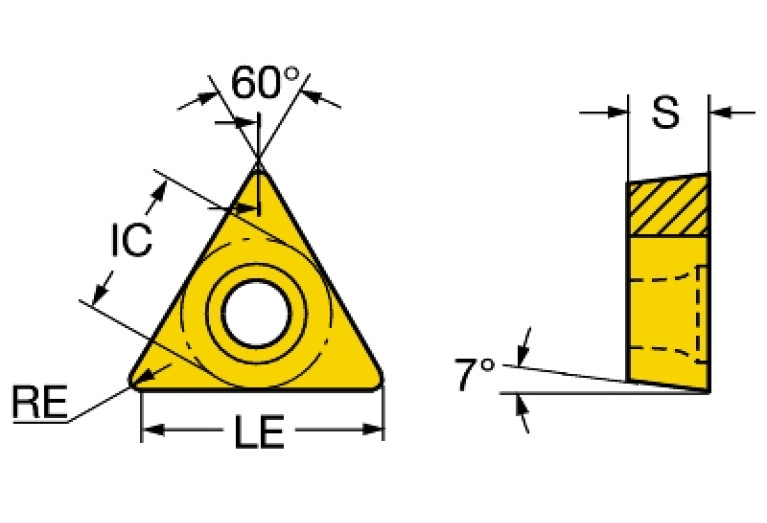

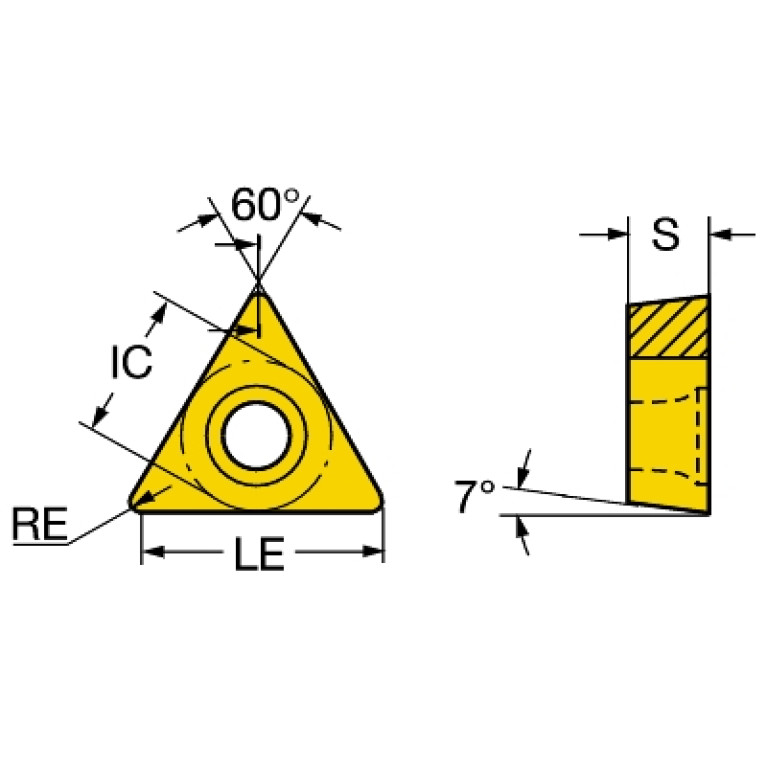

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

F - Sharpedged

COATN (Coating)

AlTiN

D1 (Fixing hole diameter)

2.25 mm

Delivery state

LH - Stocked

Delivery state valid from

6/1/2024

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1205

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

3.175 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

L - Left

Interface codes

ISISO (ISO property)

L (Cutting edge length)

5.499 mm

LE (Cutting edge effective length)

5.47 mm

Materials

P,M,S

NOI (Insert index count)

RE (Corner radius)

0.1 mm

S (Insert thickness)

1.4 mm

S1 (Insert thickness total)

1.4 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
