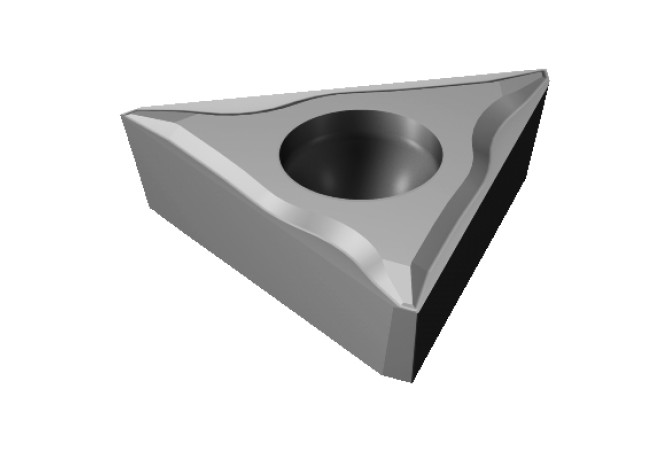

TCEX 05 01 00L-F 1205
TCEX 05 01 00L-F 1205
Артикул:
8432304
В наличии
0 ₽

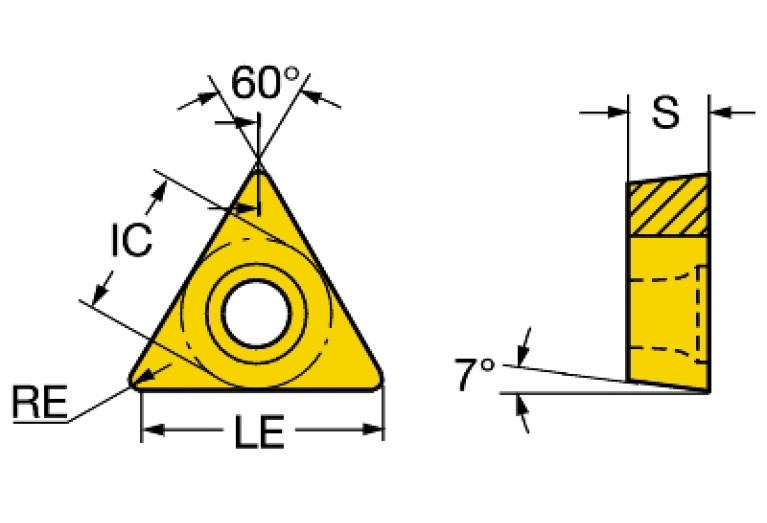

Характеристики
AN (Clearance angle major)
7 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
F
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
AlTiN
D1 (Fixing hole diameter)
2.25 mm
Delivery state
LH - Stocked
Delivery state valid from
6/1/2024
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
1205
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
3.175 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
L - Left
Interface codes
/
ISISO (ISO property)
L (Cutting edge length)
5.499 mm
Materials
P,M,S
NOI (Insert index count)
3
RE (Corner radius)
0.02 mm
S (Insert thickness)
1.4 mm
S1 (Insert thickness total)
1.4 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
E
Working process
No working processes available
WT (Weight of item)
0.001 kg
