RPGX120700E 6165
RPGX120700E 6165
Артикул:
7993915
В наличии
0 ₽
Характеристики

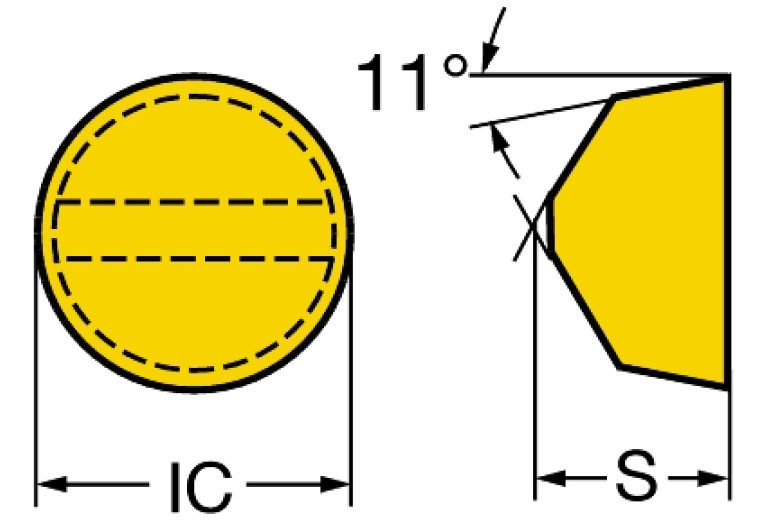

AN (Clearance angle major)
11 Degree
CB (Chip breaker face count)
0 - Without chip breaker
CBMD (Chip breaker manufacturers designation)
E
CECC (Cutting edge condition code)
E - Rounded
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
RP1207006N
GRDMFG (Grade manufacturers designation)
6165
GRDPRIO (Standard designation of the grade main application)
CS
IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
6 - Prismatic clamping, convex
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$RP1207006NA$$00
LOC-03 ISO
ISO$RP1207006NA$$00
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RP1207006N
M (M-dimension)
12.7 mm
Materials
S
MIID (Master insert identification)
RPGX120700 6165
S (Insert thickness)
7.938 mm
S1 (Insert thickness total)
7.938 mm
STDDES (Standard designation)
RPGX120700
STDDESAnsi (Standard designation ANSI)
RPGX450
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.002 kg
