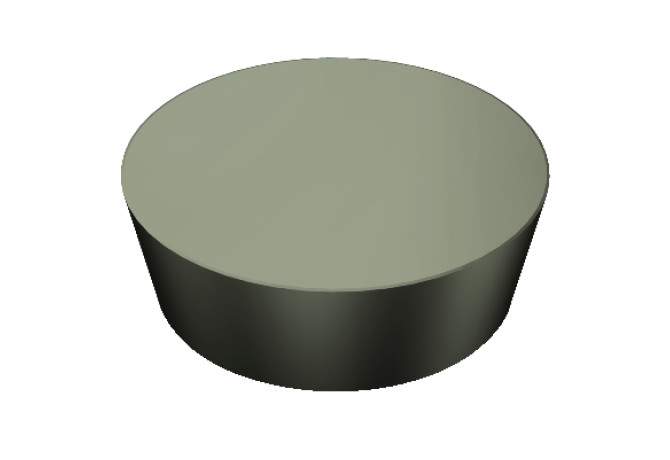

Главная Инструменты 201-10 - Round insert RPGN090300T01020 670

RPGN090300T01020 670

Артикул: 5741295

В наличии

0 ₽

В корзину

Описание

Характеристики

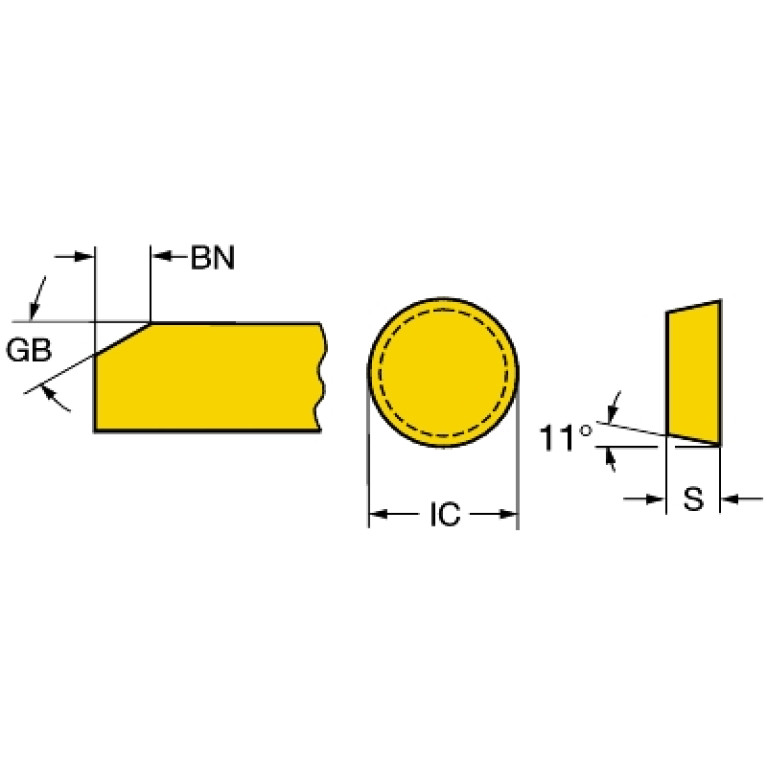

AN (Clearance angle major)

11 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RP0903001N

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

670

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RP0903001NA$$00

LOC-03 ISO

ISO$RP0903001NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP0903001N

M (M-dimension)

9.525 mm

Materials

S,H

MIID (Master insert identification)

RPGN090300 670

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

RPGN090300

STDDESAnsi (Standard designation ANSI)

RPGN320

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
