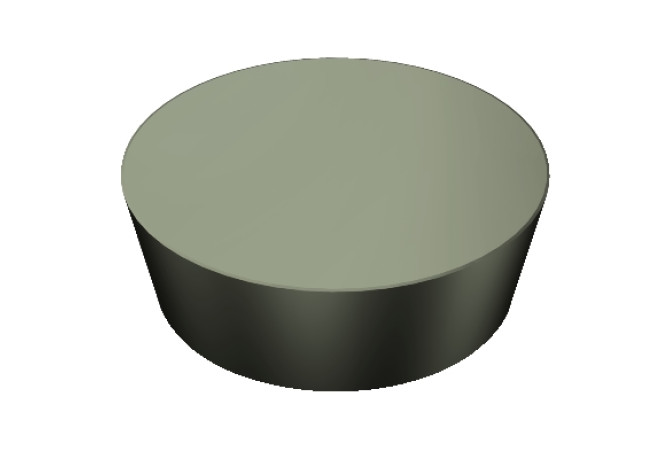

Главная Инструменты 201-10 - Round insert RPGN060300T01020 670

RPGN060300T01020 670

Артикул: 6010644

В наличии

0 ₽

В корзину

Описание

Характеристики

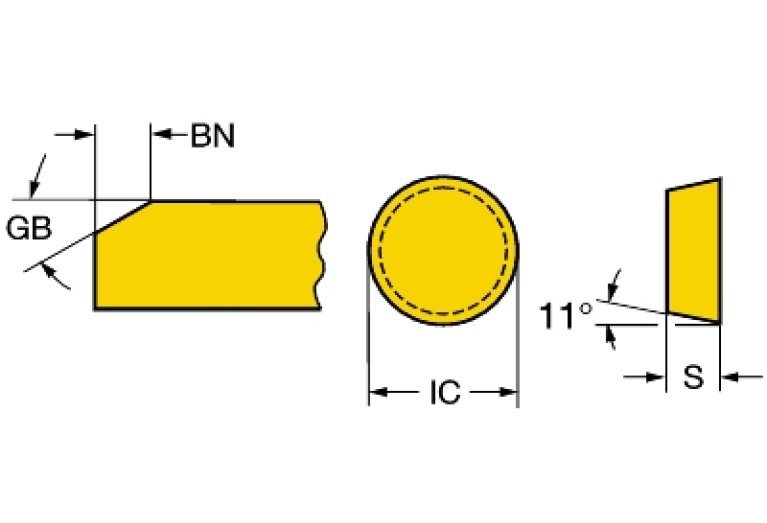

AN (Clearance angle major)

11 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

RP0603001N

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

670

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RP0603001NA$$00

LOC-03 ISO

ISO$RP0603001NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP0603001N

M (M-dimension)

6.35 mm

Materials

MIID (Master insert identification)

RPGN060300 670

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

RPGN060300

STDDESAnsi (Standard designation ANSI)

RPGN220

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available
