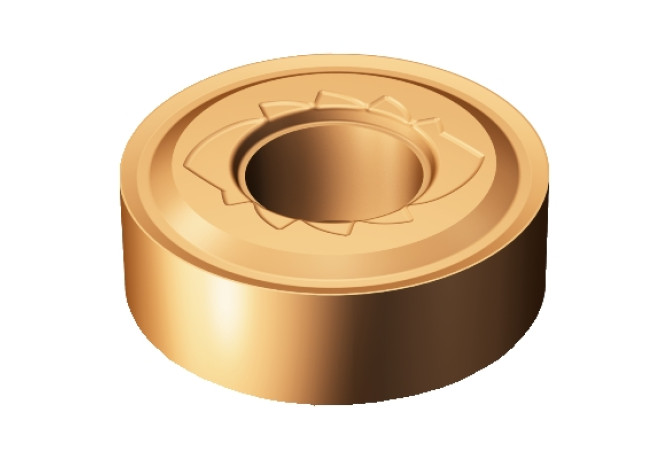

RNMG 19 06 00-SM 1115
RNMG 19 06 00-SM 1115
Артикул:
6851326
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
SM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN+TiAlN
D1 (Fixing hole diameter)
7.925 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
RN1906002N
GRDMFG (Grade manufacturers designation)
1115
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
19.05 mm
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$RN1906002NB$$00
LOC-03 ISO
ISO$RN1906002NB$$00
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RN1906002N
M (M-dimension)
19.05 mm
Materials
M,S
MIID (Master insert identification)
RNMG190600 1115
S (Insert thickness)
6.35 mm
S1 (Insert thickness total)
6.35 mm
STDDES (Standard designation)
RNMG190600
STDDESAnsi (Standard designation ANSI)
RNMG640
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.021 kg
