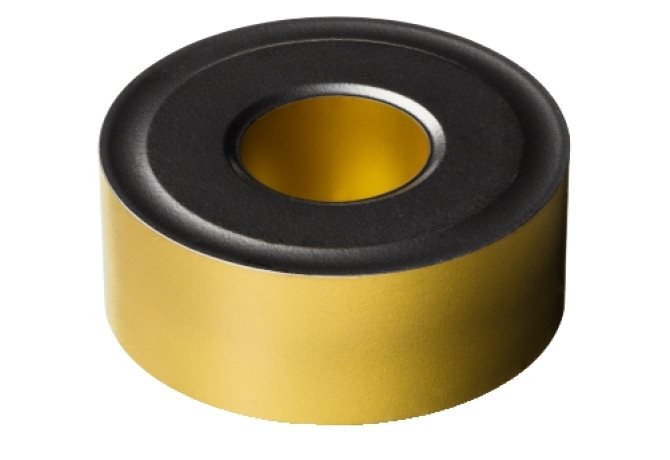

Главная Инструменты 201-10 - Round insert RNMG 19 06 00 4335

RNMG 19 06 00 4335

Артикул: 7080933

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

7.925 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RN1906002N

GRDMFG (Grade manufacturers designation)

4335

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

19.05 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RN1906002NB$$00

LOC-03 ISO

ISO$RN1906002NB$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN1906002N

M (M-dimension)

19.05 mm

Materials

MIID (Master insert identification)

RNMG190600 4335

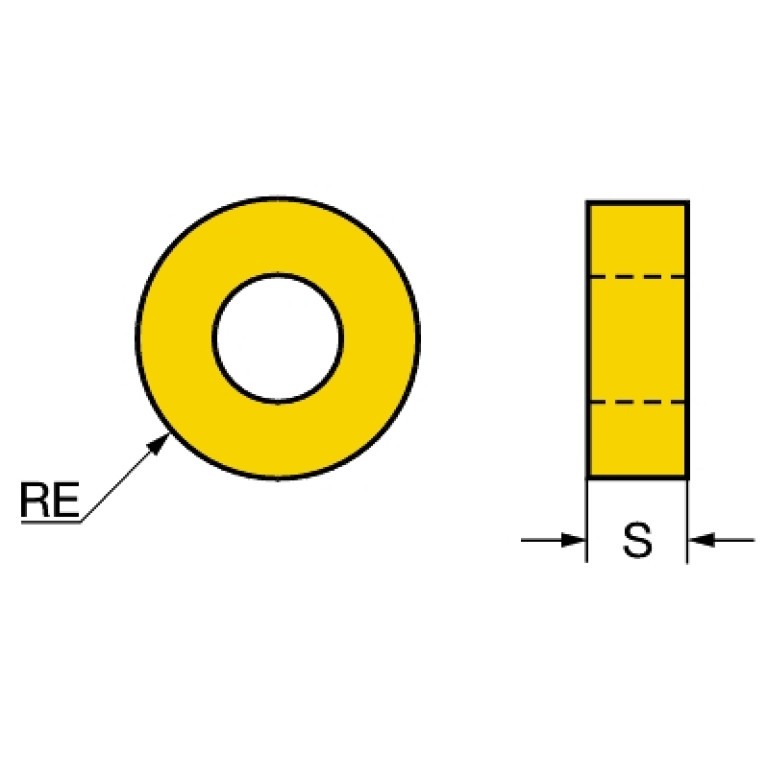

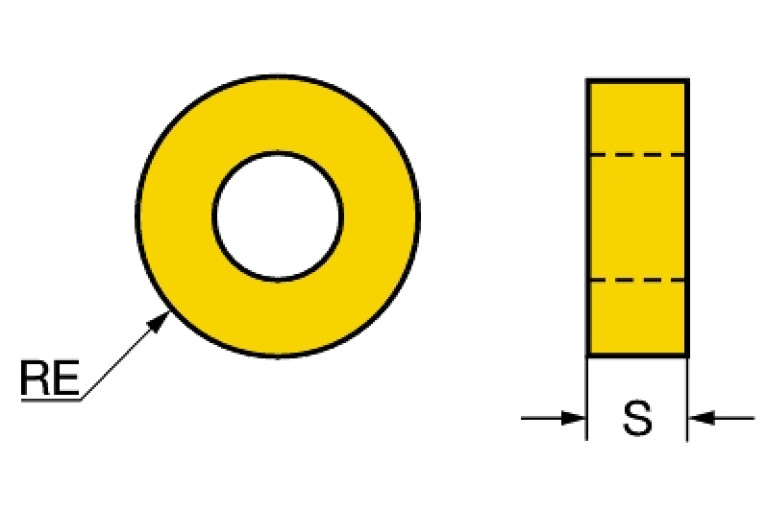

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

STDDES (Standard designation)

RNMG190600

STDDESAnsi (Standard designation ANSI)

RNMG640

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.02 kg
