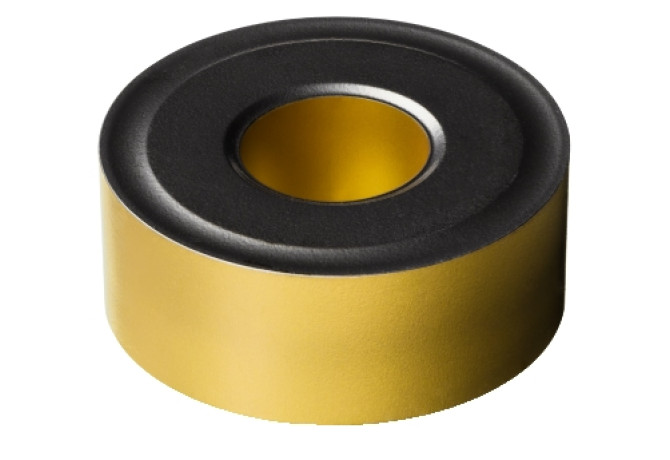

Главная Инструменты 201-10 - Round insert RNMG 12 04 00 4205

RNMG 12 04 00 4205

Артикул: 5741197

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TICN+AL2O3+TIN

D1 (Fixing hole diameter)

5.156 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

RN1204002N

GRDMFG (Grade manufacturers designation)

4205

GRDPRIO (Standard designation of the grade main application)

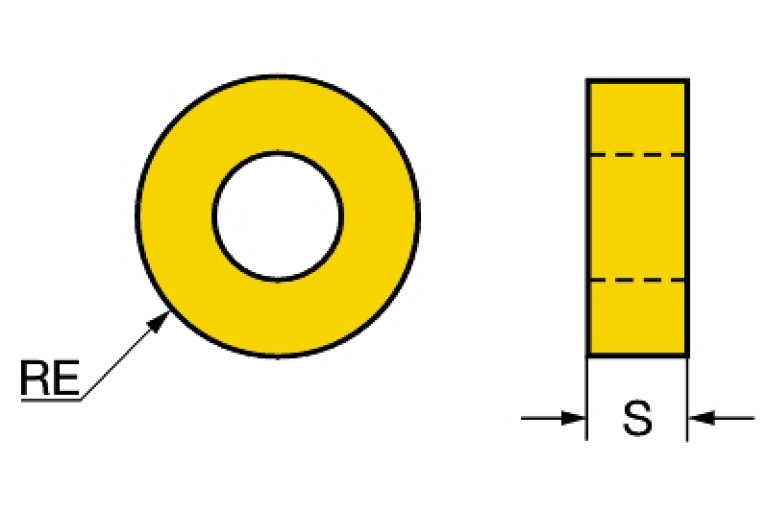

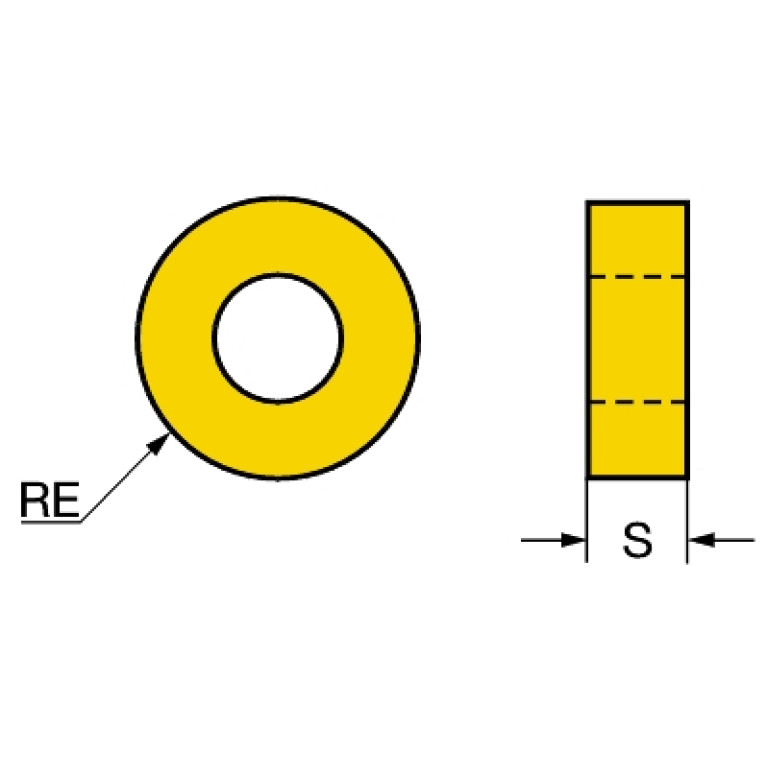

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RN1204002NB$$00

LOC-03 ISO

ISO$RN1204002NB$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN1204002N

M (M-dimension)

12.7 mm

Materials

MIID (Master insert identification)

RNMG120400 4205

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

RNMG120400

STDDESAnsi (Standard designation ANSI)

RNMG430

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.007 kg
