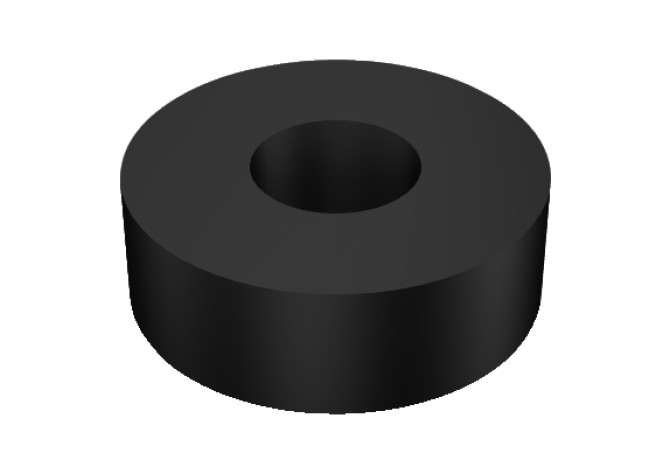

Главная Инструменты 201-10 - Round insert RNGA090300S01020D CB20

RNGA090300S01020D CB20

Артикул: 5741155

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

S - Chamfered and rounded

D1 (Fixing hole diameter)

3.81 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RN0903002N

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

CB20

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RN0903002NA$$00

LOC-03 ISO

ISO$RN0903002NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN0903002N

M (M-dimension)

9.525 mm

Materials

MIID (Master insert identification)

RNGA090300 CB20

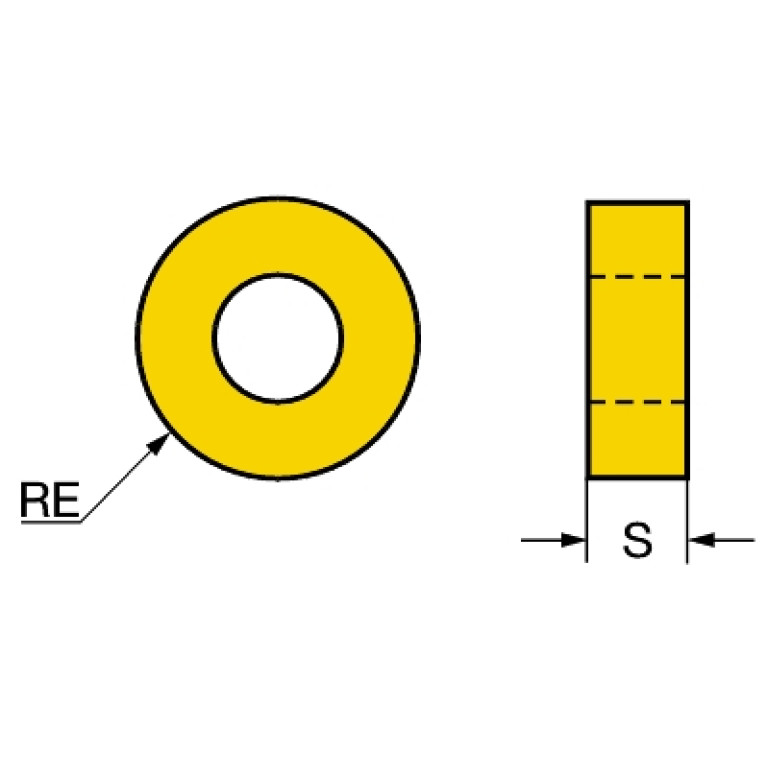

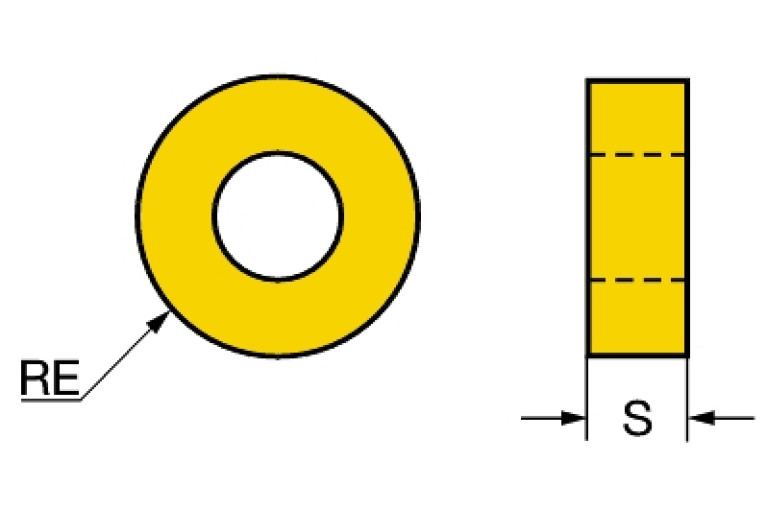

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

RNGA090300

STDDESAnsi (Standard designation ANSI)

RNGA320

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
