Главная Инструменты 201-10 - Round insert RCMX 32 09 00 4215

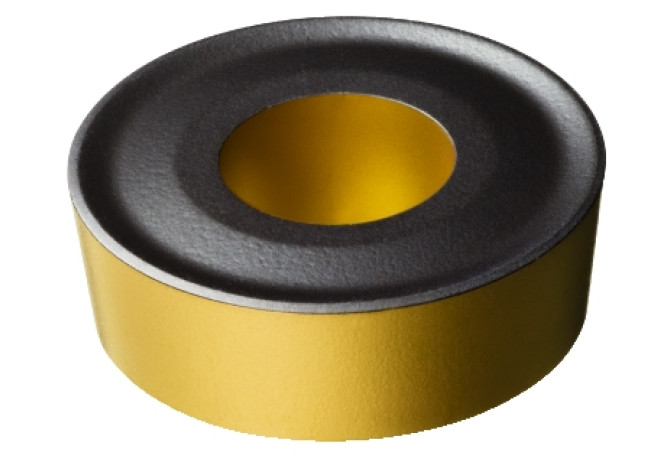

RCMX 32 09 00 4215

Артикул: 5741006

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

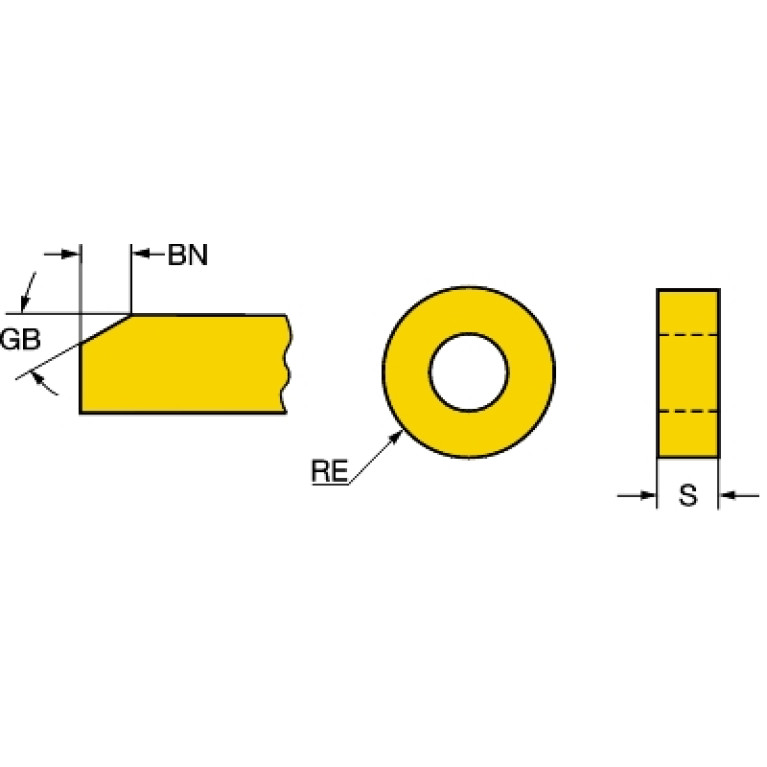

BN (Face land width)

0.4 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

9.5 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

RC3209M02N

GB (Face land angle)

15 Degree

GRDMFG (Grade manufacturers designation)

4215

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

32 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC3209M02NB$$M0

LOC-03 ISO

ISO$RC3209M02NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC3209M02N

M (M-dimension)

32 mm

Materials

P,M,K

MIID (Master insert identification)

RCMX320900 4215

S (Insert thickness)

9.525 mm

S1 (Insert thickness total)

9.525 mm

STDDES (Standard designation)

RCMX320900

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.089 kg
