Главная Инструменты 201-10 - Round insert RCMX 25 07 00 4235

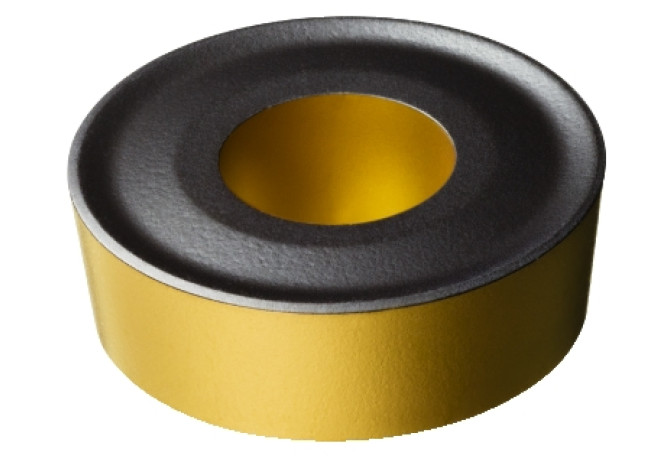

RCMX 25 07 00 4235

Артикул: 5741043

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

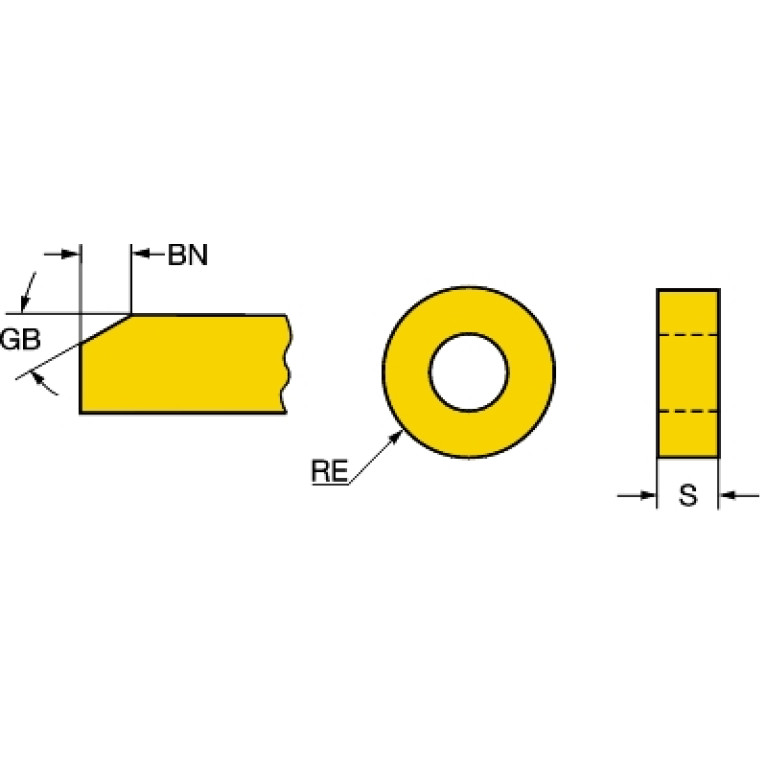

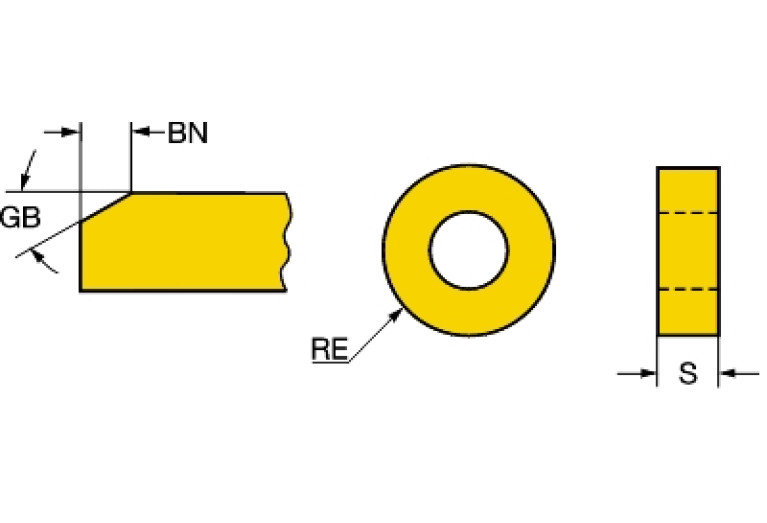

BN (Face land width)

0.4 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

7.2 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

RC2507M02N

GB (Face land angle)

15 Degree

GRDMFG (Grade manufacturers designation)

4235

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

25 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC2507M02NB$$M0

LOC-03 ISO

ISO$RC2507M02NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC2507M02N

M (M-dimension)

25 mm

Materials

P,M,K

MIID (Master insert identification)

RCMX250700 4235

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

STDDES (Standard designation)

RCMX250700

STDDESAnsi (Standard designation ANSI)

RCMX850

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.043 kg
