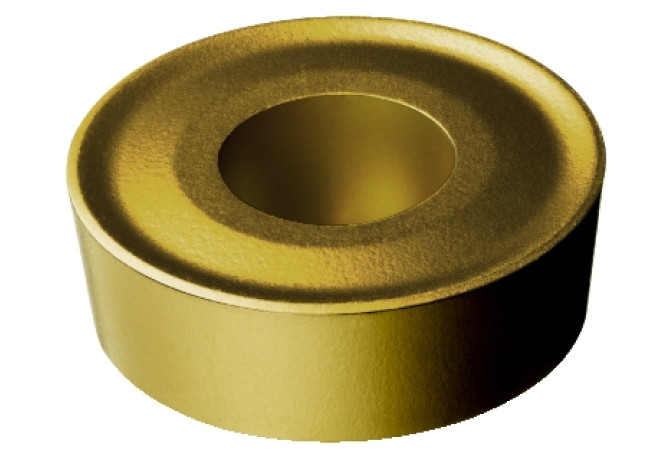

RCMX 10 03 00E S05F
RCMX 10 03 00E S05F
Артикул:
5740680
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
7 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
E
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCrN+Al2O3+TiN
D1 (Fixing hole diameter)
3.6 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
RC1003M02N
GRDMFG (Grade manufacturers designation)
S05F
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
10 mm
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$RC1003M02NB$$M0
LOC-03 ISO
ISO$RC1003M02NB$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC1003M02N
M (M-dimension)
10 mm
Materials
S
MIID (Master insert identification)
RCMX100300 S05F

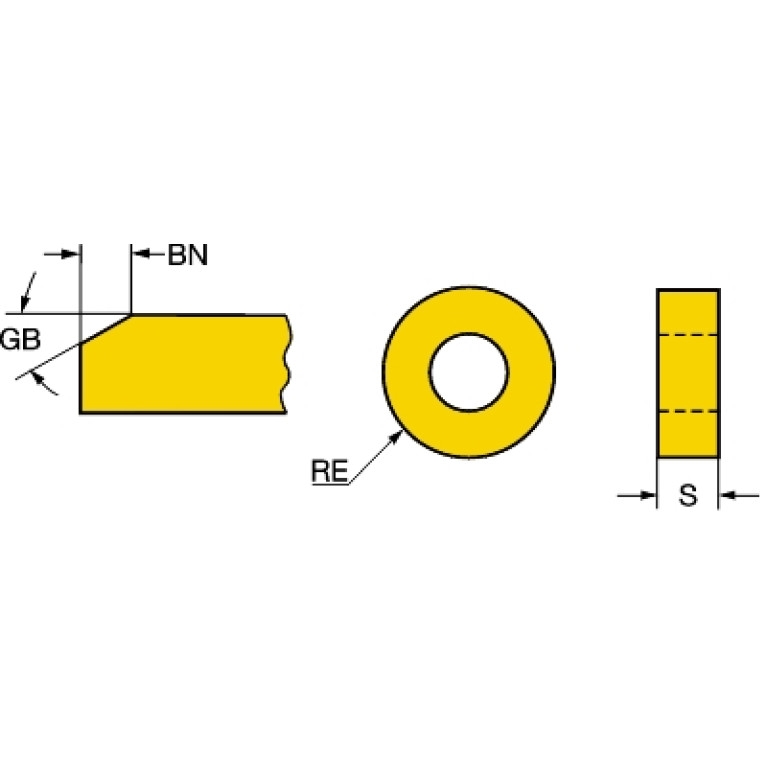

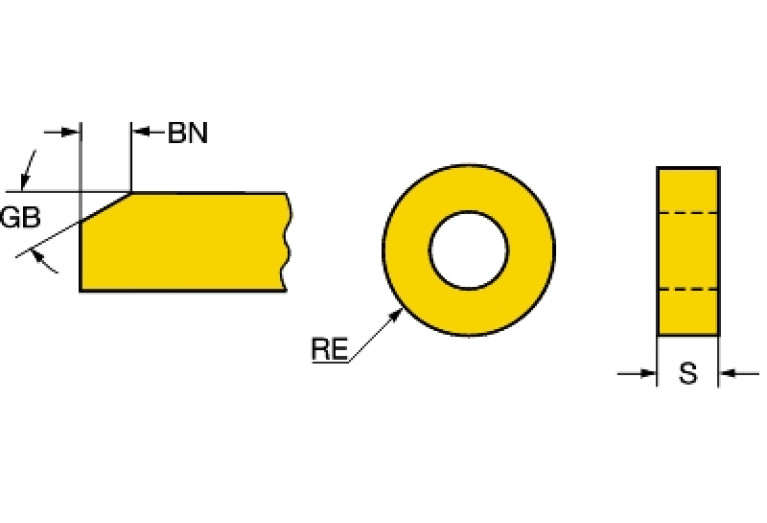

S (Insert thickness)
3.175 mm
S1 (Insert thickness total)
3.175 mm
STDDES (Standard designation)
RCMX100300
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.003 kg
