RCMX 06 06 00-SM S205
RCMX 06 06 00-SM S205
Артикул:
8075490
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
7 Degree
BN (Face land width)
0.1 mm
CB (Chip breaker face count)
0 - Without chip breaker
CBMD (Chip breaker manufacturers designation)
SM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
RC0606006N
GB (Face land angle)
15 Degree
GRDMFG (Grade manufacturers designation)
S205
GRDPRIO (Standard designation of the grade main application)
HC

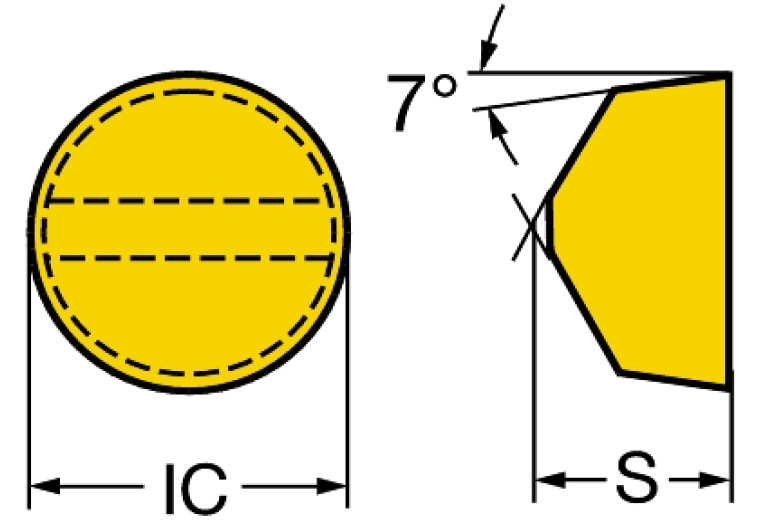

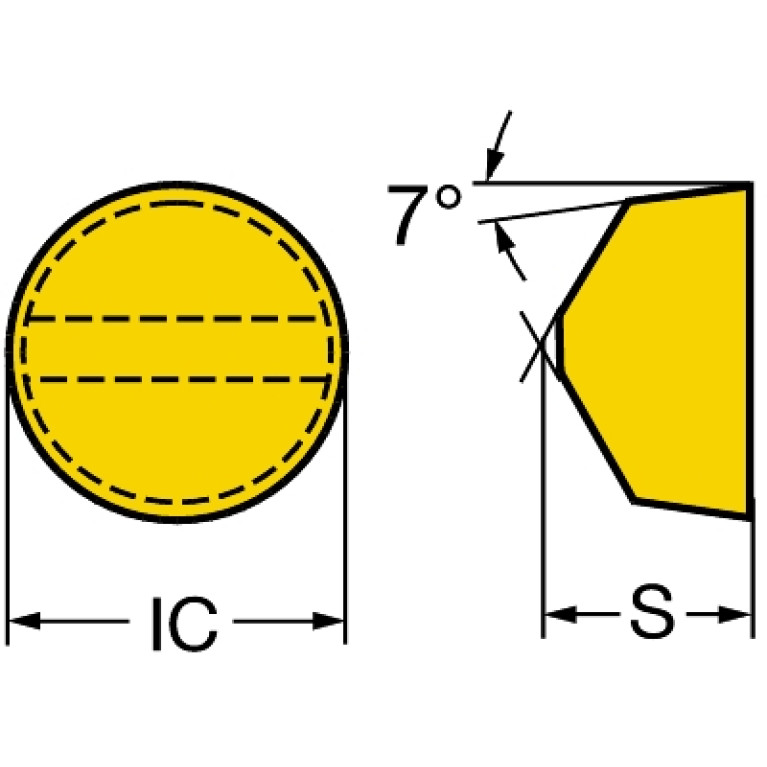

IC (Inscribed circle diameter)
6.35 mm
IFS (Insert mounting style code)
6 - Prismatic clamping, convex
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$RC0606006NA$$00
LOC-03 ISO
ISO$RC0606006NA$$00
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC0606006N
M (M-dimension)
6.35 mm
Materials
S
MIID (Master insert identification)
RCMX060600 S205
S (Insert thickness)
6.35 mm
S1 (Insert thickness total)
6.35 mm
STDDES (Standard designation)
RCMX060600
STDDESAnsi (Standard designation ANSI)
RCMX240
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.002 kg
