Главная Инструменты 201-10 - Round insert RCMT 25 07 M0 4215

RCMT 25 07 M0 4215

Артикул: 5740785

В наличии

0 ₽

В корзину

Описание

Характеристики

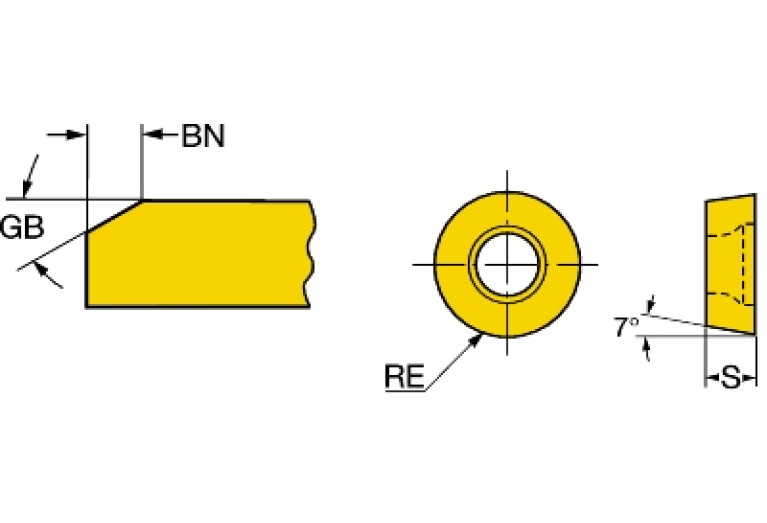

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.2 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

7.6 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

RC2507M03N

GB (Face land angle)

15 Degree

GRDMFG (Grade manufacturers designation)

4215

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

25 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC2507M03NB$$M0

LOC-03 ISO

ISO$RC2507M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC2507M03N

M (M-dimension)

25 mm

Materials

P,M,K

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.043 kg
