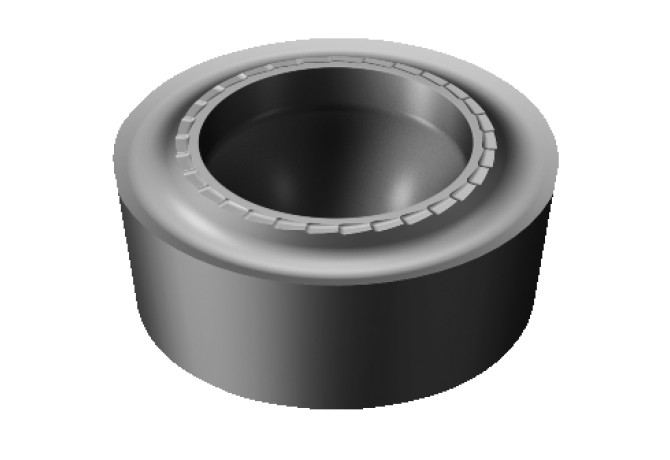

RCMT 16 06 M0-SM 1205
RCMT 16 06 M0-SM 1205
Артикул:
8432252
В наличии
0 ₽
Характеристики

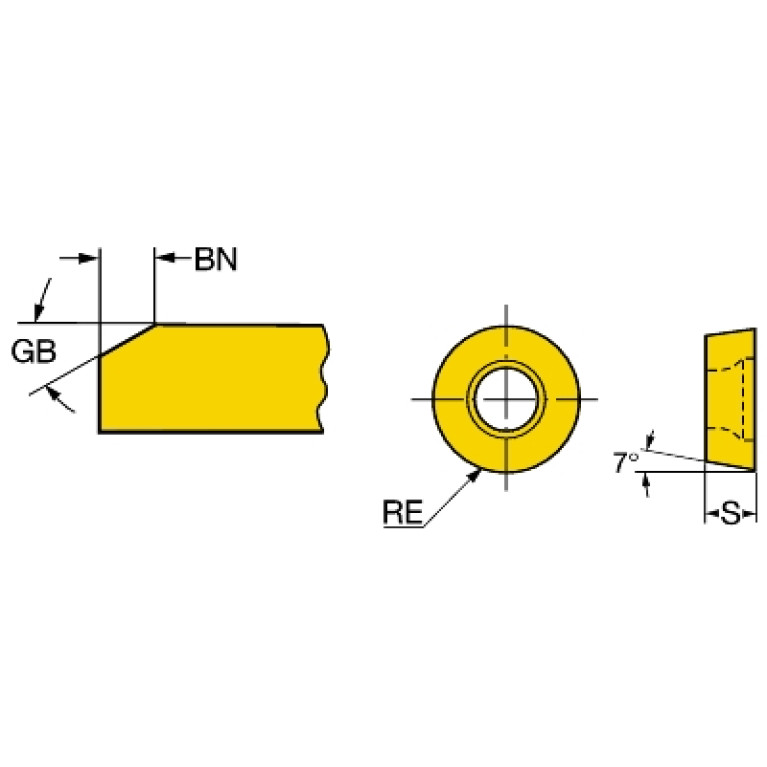

AN (Clearance angle major)
7 Degree
BN (Face land width)
0.1 mm
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
SM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
AlTiN
D1 (Fixing hole diameter)
5.5 mm
Delivery state
LH - Stocked
Delivery state valid from
6/1/2024
DIN
RC1606M03N
GRDMFG (Grade manufacturers designation)
1205
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
16 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
ISO$RC1606M03NB$$M0
LOC-03 ISO
ISO$RC1606M03NB$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC1606M03N
M (M-dimension)
16 mm
Materials
M,S
S (Insert thickness)
6.35 mm
S1 (Insert thickness total)
6.35 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.014 kg
