Главная Инструменты 201-10 - Round insert RCMT 16 06 M0 4235

RCMT 16 06 M0 4235

Артикул: 5740751

В наличии

0 ₽

В корзину

Описание

Характеристики

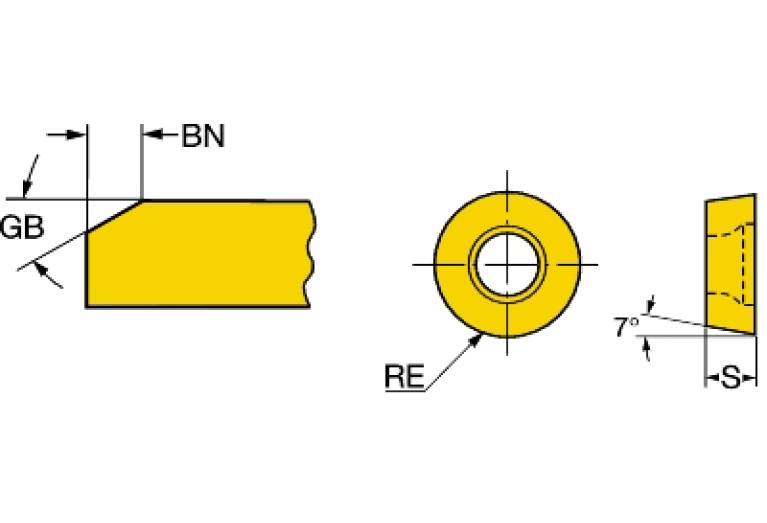

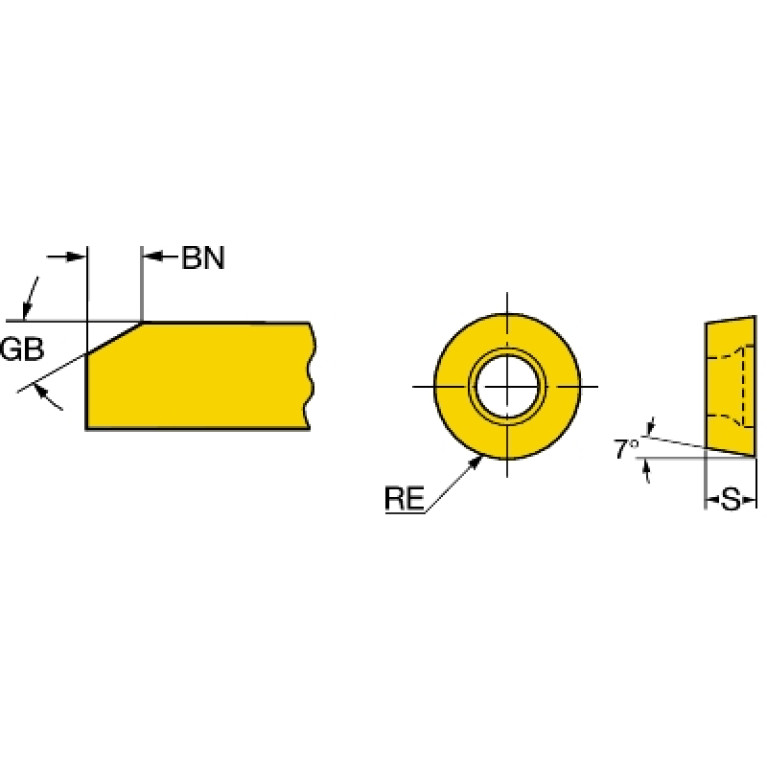

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.15 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

5.5 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

RC1606M03N

GB (Face land angle)

15 Degree

GRDMFG (Grade manufacturers designation)

4235

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

16 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC1606M03NB$$M0

LOC-03 ISO

ISO$RC1606M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1606M03N

M (M-dimension)

16 mm

Materials

P,M,K

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.014 kg
