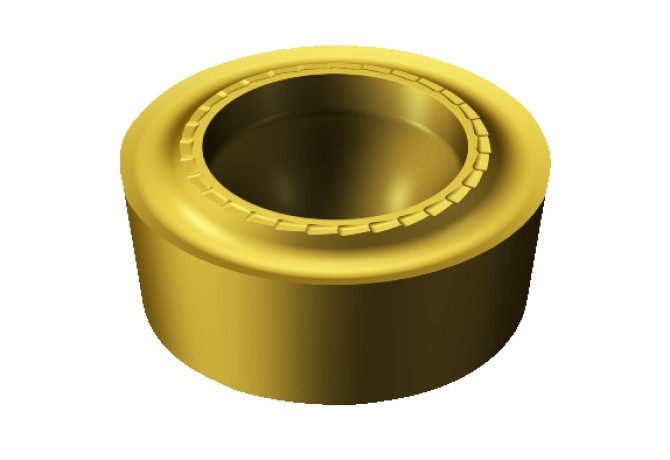

RCMT 12 04 M0-SM S05F
RCMT 12 04 M0-SM S05F
Артикул:
5740727
В наличии
0 ₽
Характеристики

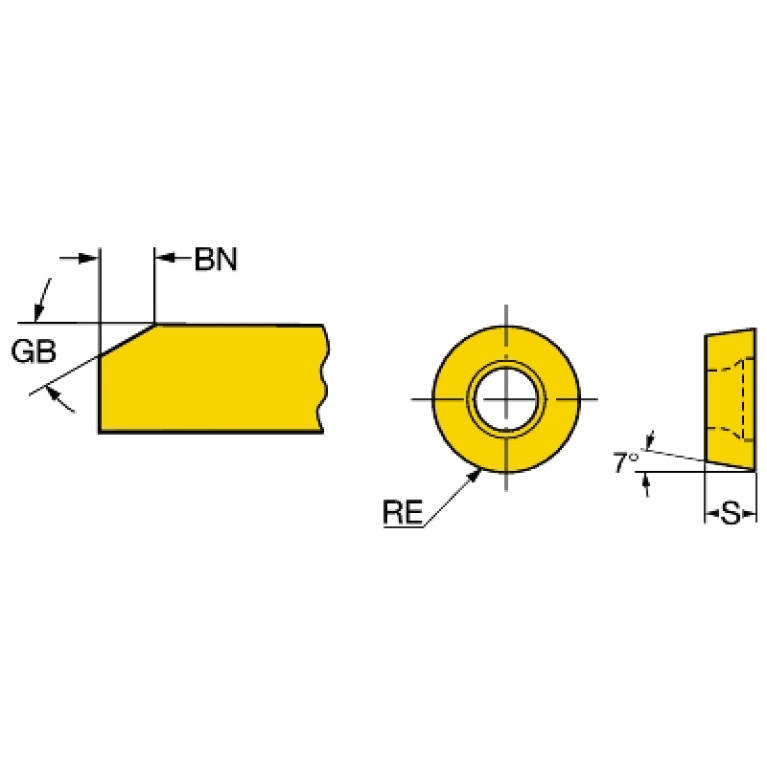

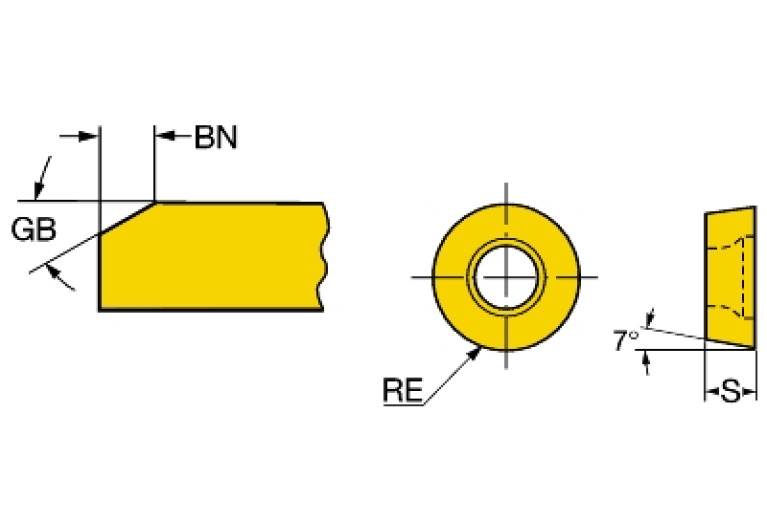

AN (Clearance angle major)
7 Degree
BN (Face land width)
0.1 mm
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
SM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCrN+Al2O3+TiN
D1 (Fixing hole diameter)
4.4 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
RC1204M03N
GB (Face land angle)
15 Degree
GRDMFG (Grade manufacturers designation)
S05F
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
12 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
ISO$RC1204M03NB$$M0
LOC-03 ISO
ISO$RC1204M03NB$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC1204M03N
M (M-dimension)
12 mm
Materials
S
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.006 kg
