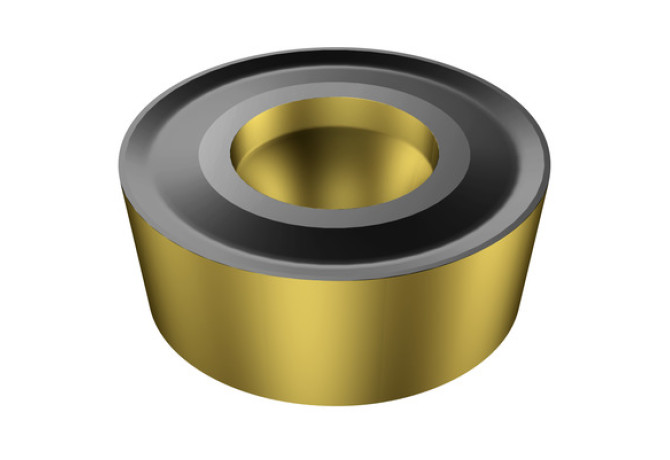

RCMT 09 T3 00 4235

RCMT 09 T3 00 4235 RCMT 09 T3 00 4235 RCMT 09 T3 00 4235

RCMT 09 T3 00 4235

SV - Sandvik-Coromant
Артикул: 5740674
В наличии
0 ₽
В корзину
Описание
Характеристики

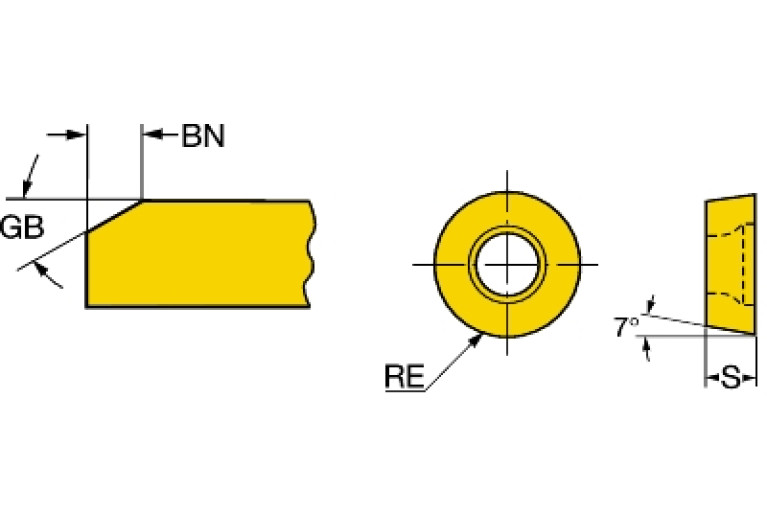

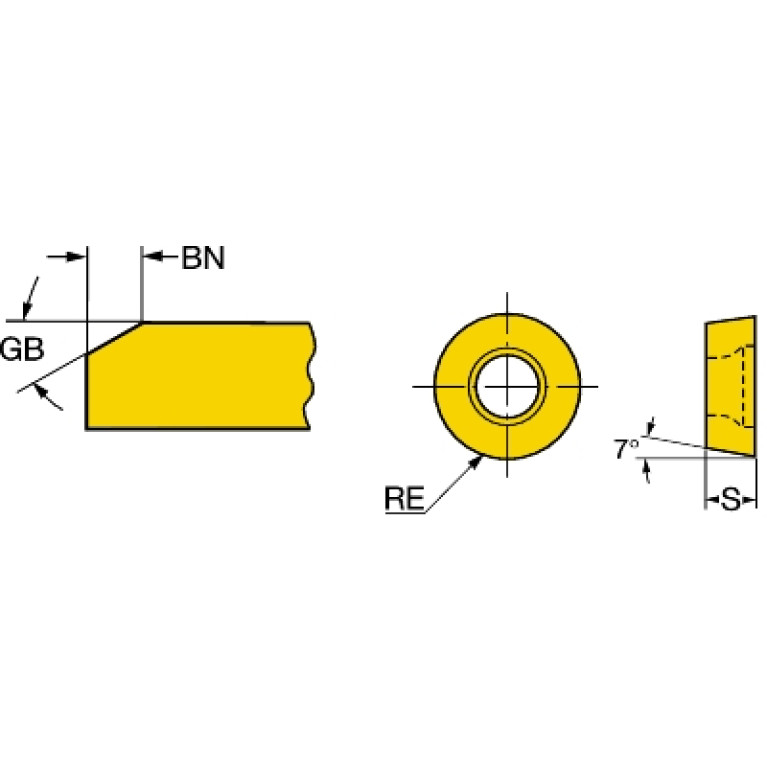

AN (Clearance angle major)
7 Degree
BN (Face land width)
0.08 mm
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
00
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
4 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
RC09T3003N
GB (Face land angle)
15 Degree
GRDMFG (Grade manufacturers designation)
4235
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$RC09T3003NB$$00
LOC-03 ISO
ISO$RC09T3003NB$$00
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC09T3003N
M (M-dimension)
9.525 mm
Materials
P,M,K
MIID (Master insert identification)
RCMT09T300 4235
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
STDDES (Standard designation)
RCMT09T300
STDDESAnsi (Standard designation ANSI)
RCMT32.50
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.003 kg
