Главная Инструменты 201-10 - Round insert RCMT 08 03 M0-SM H13A

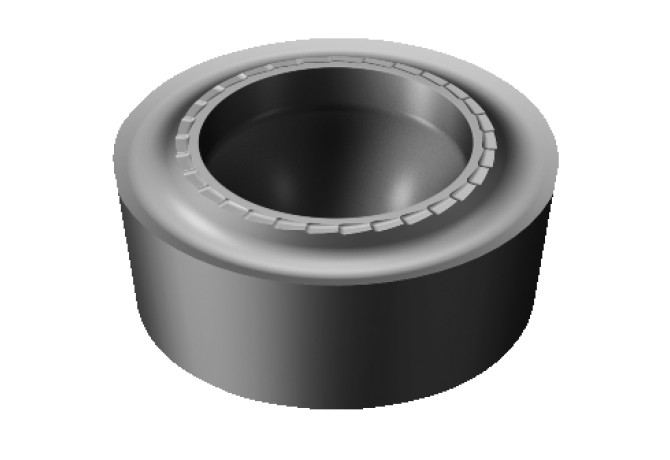

RCMT 08 03 M0-SM H13A

Артикул: 5740621

В наличии

0 ₽

В корзину

Описание

Характеристики

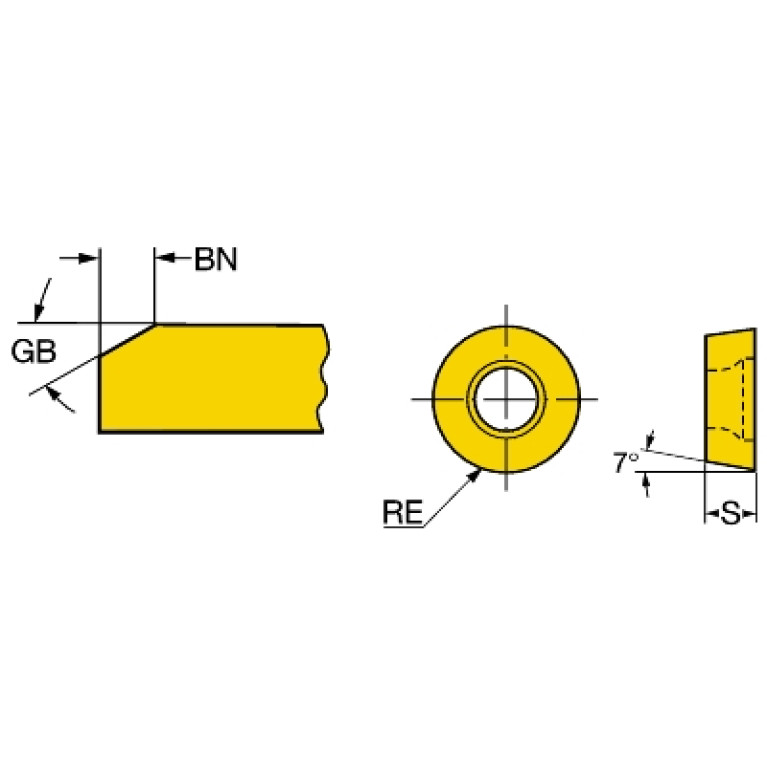

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

D1 (Fixing hole diameter)

3.4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RC0803M03N

GRDMFG (Grade manufacturers designation)

H13A

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

8 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC0803M03NB$$M0

LOC-03 ISO

ISO$RC0803M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0803M03N

M (M-dimension)

8 mm

Materials

M,S

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
