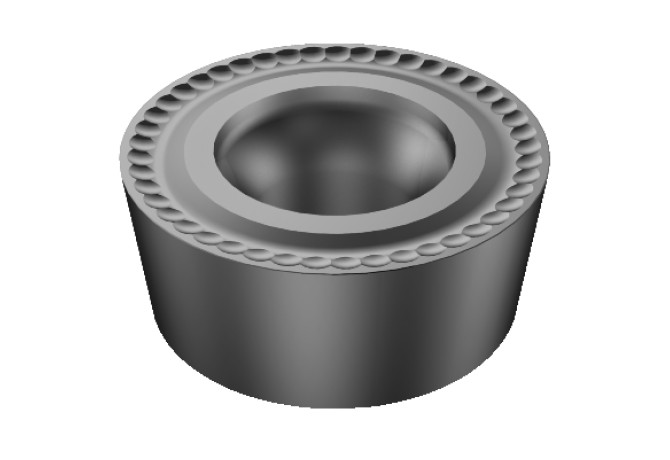

RCMT 06 02 M0 1205

Артикул: 8432232

В наличии

0 ₽

В корзину

Описание

Характеристики

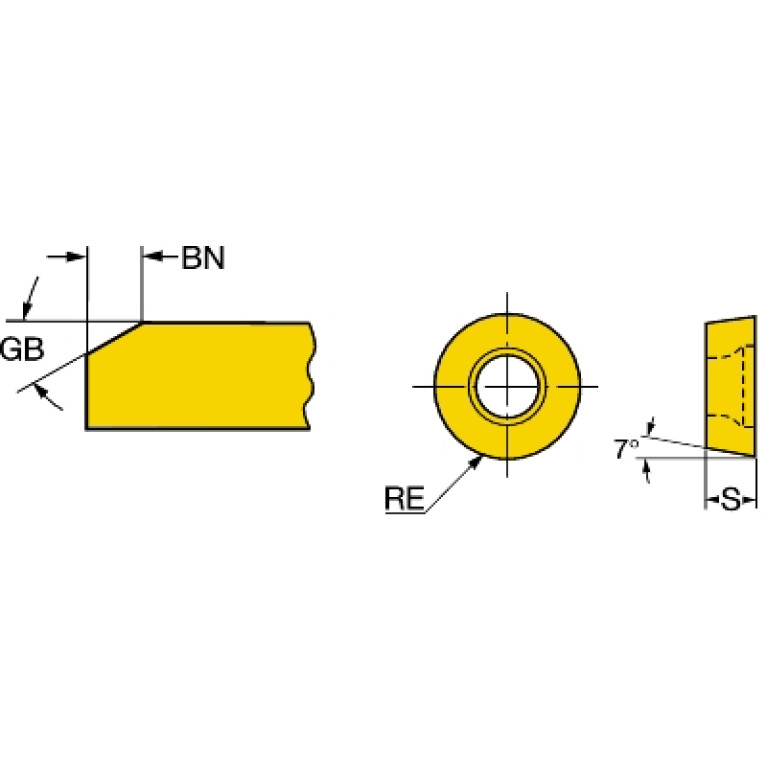

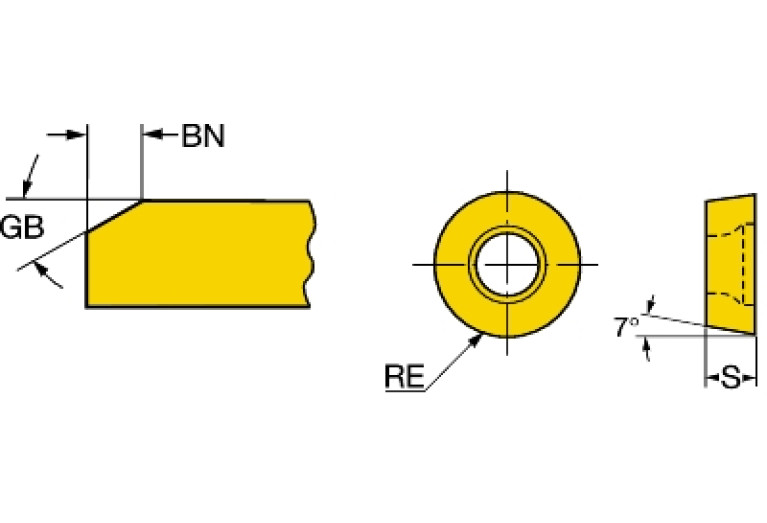

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

AlTiN

D1 (Fixing hole diameter)

2.8 mm

Delivery state

LH - Stocked

Delivery state valid from

6/1/2024

DIN

RC0602M03N

GRDMFG (Grade manufacturers designation)

1205

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC0602M03NB$$M0

LOC-03 ISO

ISO$RC0602M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0602M03N

M (M-dimension)

6 mm

Materials

P,M,S

S (Insert thickness)

2.381 mm

S1 (Insert thickness total)

2.381 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
