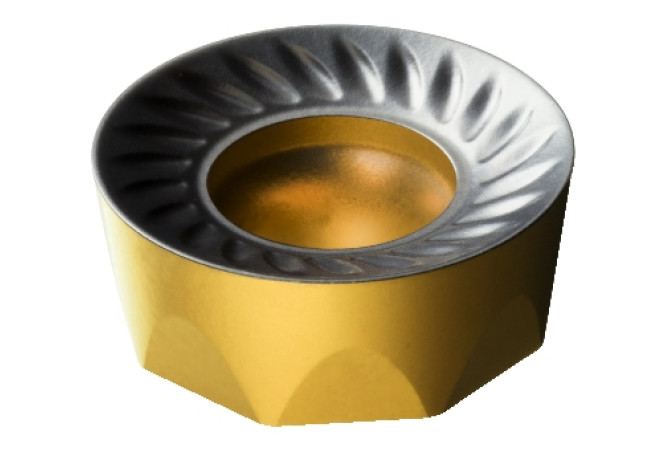

Главная Инструменты 201-10 - Round insert RCKT 19 06 00-PM 4340

RCKT 19 06 00-PM 4340

Артикул: 7564625

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

6.5 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RC1906003N

GRDMFG (Grade manufacturers designation)

4340

GRDPRIO (Standard designation of the grade main application)

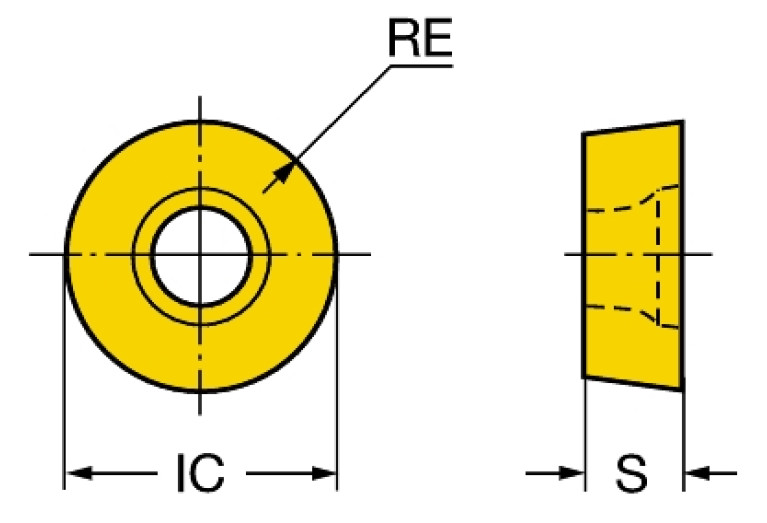

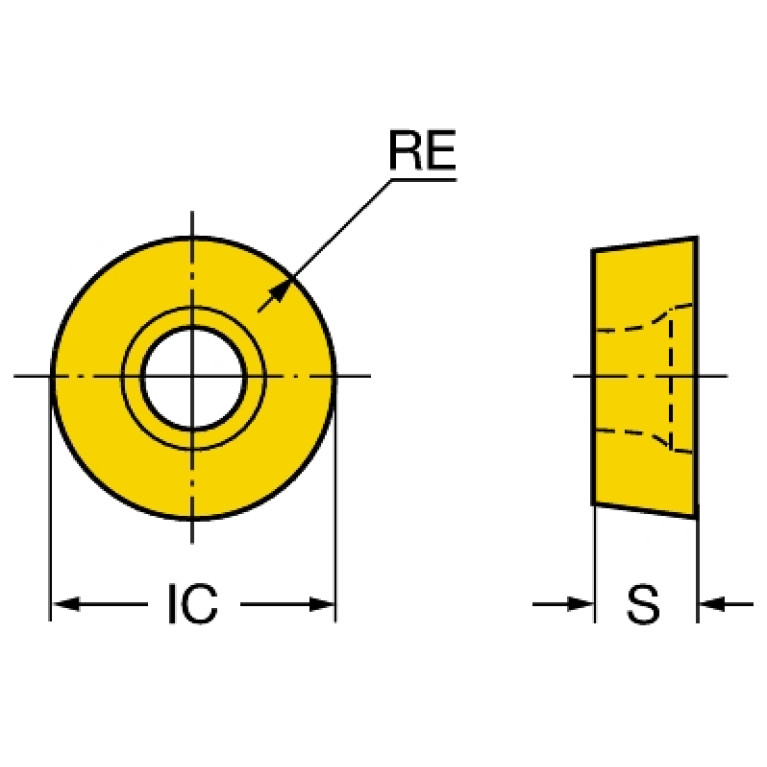

IC (Inscribed circle diameter)

19.05 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC1906003NB$$00

LOC-03 ISO

ISO$RC1906003NB$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1906003N

M (M-dimension)

19.05 mm

Materials

P,M,K

MIID (Master insert identification)

RCKT190600 4340

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

STDDES (Standard designation)

RCKT190600

STDDESAnsi (Standard designation ANSI)

RCKT640

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

K - Cold formed

Working process

No working processes available

WT (Weight of item)

0.018 kg
