Главная Инструменты 201-10 - Round insert RCKT 13 04 00-PM 1230

RCKT 13 04 00-PM 1230

Артикул: 8519488

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

TiAlSiN

D1 (Fixing hole diameter)

4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

RC1204003N

GRDMFG (Grade manufacturers designation)

1230

GRDPRIO (Standard designation of the grade main application)

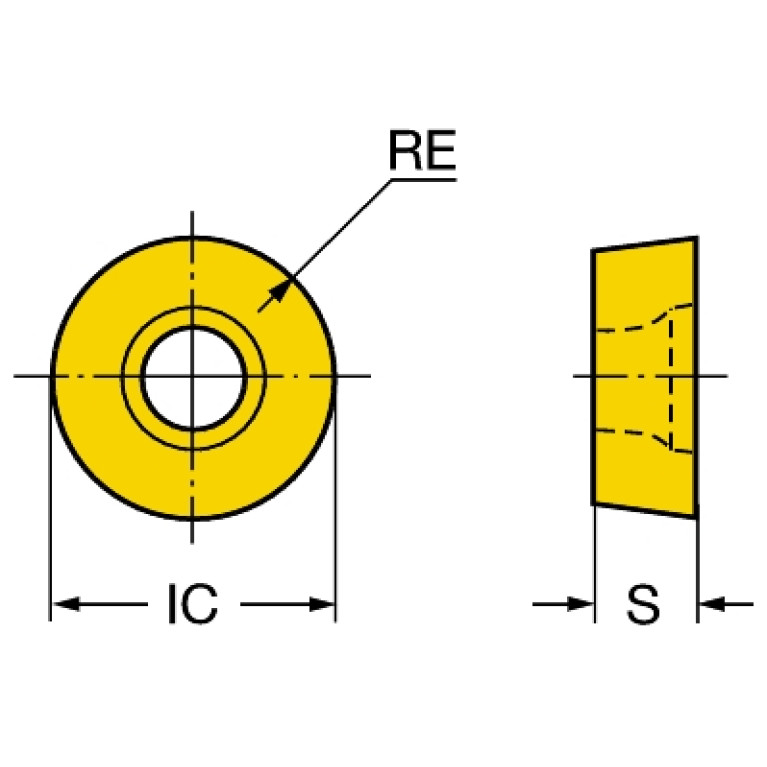

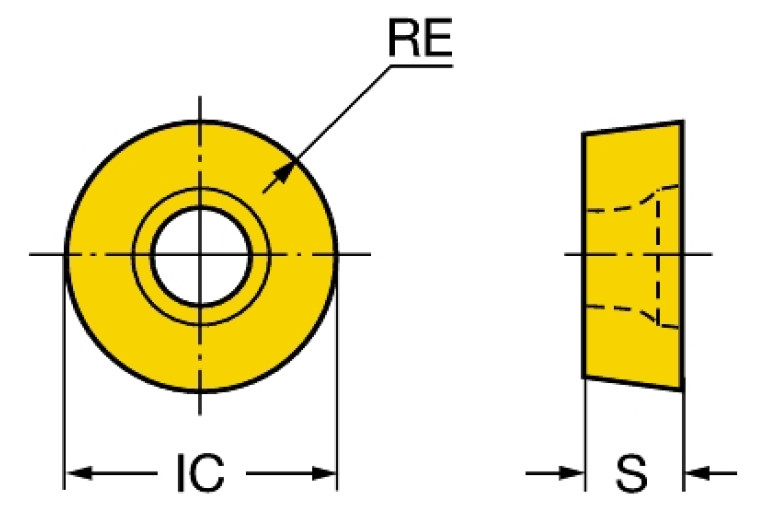

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC1204003NB$Z00

LOC-03 ISO

ISO$RC1204003NB$Z00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204003N

M (M-dimension)

12.7 mm

Materials

P,M

MIID (Master insert identification)

RCKT130400 1230

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

K - Cold formed

Working process

No working processes available

WT (Weight of item)

0.006 kg
