Главная Инструменты 201-10 - Round insert RCKT 10 T3 M0-WM 530

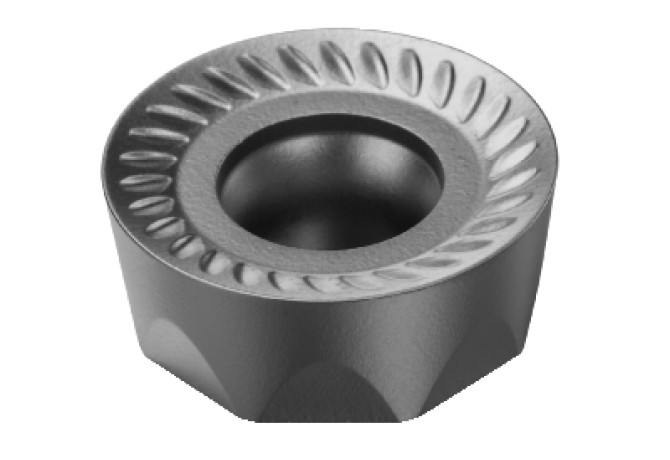

RCKT 10 T3 M0-WM 530

Артикул: 5740446

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

D1 (Fixing hole diameter)

4.4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RC10T3M03N

GRDMFG (Grade manufacturers designation)

530

GRDPRIO (Standard designation of the grade main application)

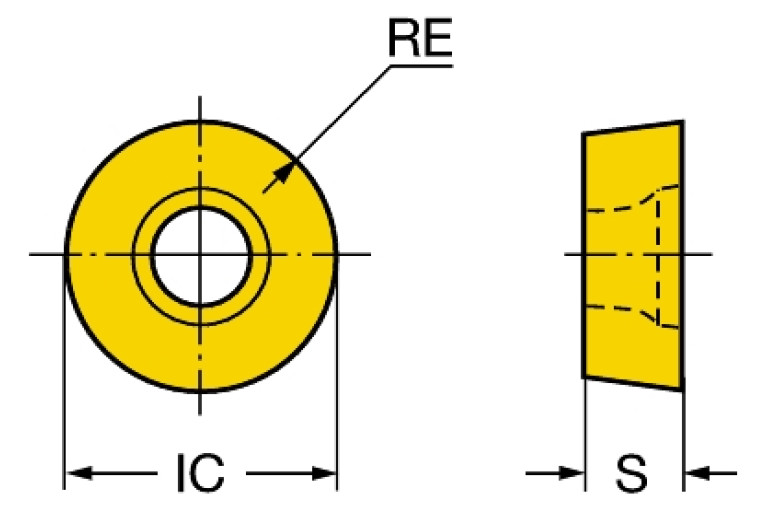

IC (Inscribed circle diameter)

10 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC10T3M03NB$$M0

LOC-03 ISO

ISO$RC10T3M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC10T3M03N

M (M-dimension)

10 mm

Materials

P,M,N,H

S (Insert thickness)

3.969 mm

S1 (Insert thickness total)

3.969 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

K - Cold formed

Working process

No working processes available

WT (Weight of item)

0.001 kg
