RCKT 10 T3 M0-KH 1020
RCKT 10 T3 M0-KH 1020
Артикул:
5739820
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
7 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
KH
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TIALN
D1 (Fixing hole diameter)
4.4 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
RC10T3M03N
GRDMFG (Grade manufacturers designation)
1020
GRDPRIO (Standard designation of the grade main application)
HC

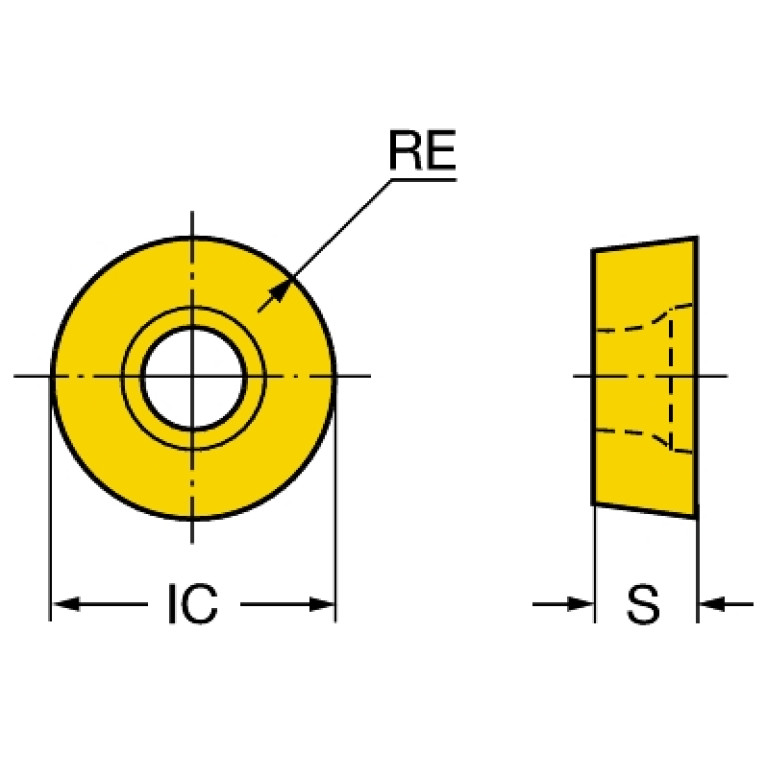

IC (Inscribed circle diameter)
10 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
ISO$RC10T3M03NB$$M0
LOC-03 ISO
ISO$RC10T3M03NB$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC10T3M03N
M (M-dimension)
10 mm
Materials
K
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
K - Cold formed
Working process
No working processes available
WT (Weight of item)
0.003 kg
