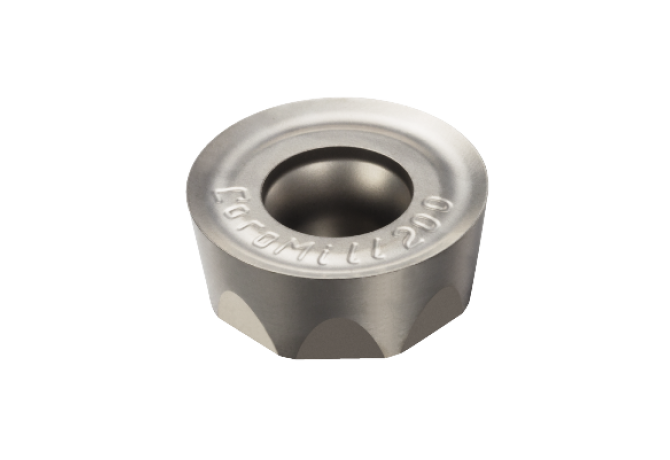

Главная Инструменты 201-10 - Round insert RCHT 19 06 00-KL H13A

RCHT 19 06 00-KL H13A

Артикул: 5740001

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

F - Sharpedged

D1 (Fixing hole diameter)

6.5 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

RC1906003N

GRDMFG (Grade manufacturers designation)

H13A

GRDPRIO (Standard designation of the grade main application)

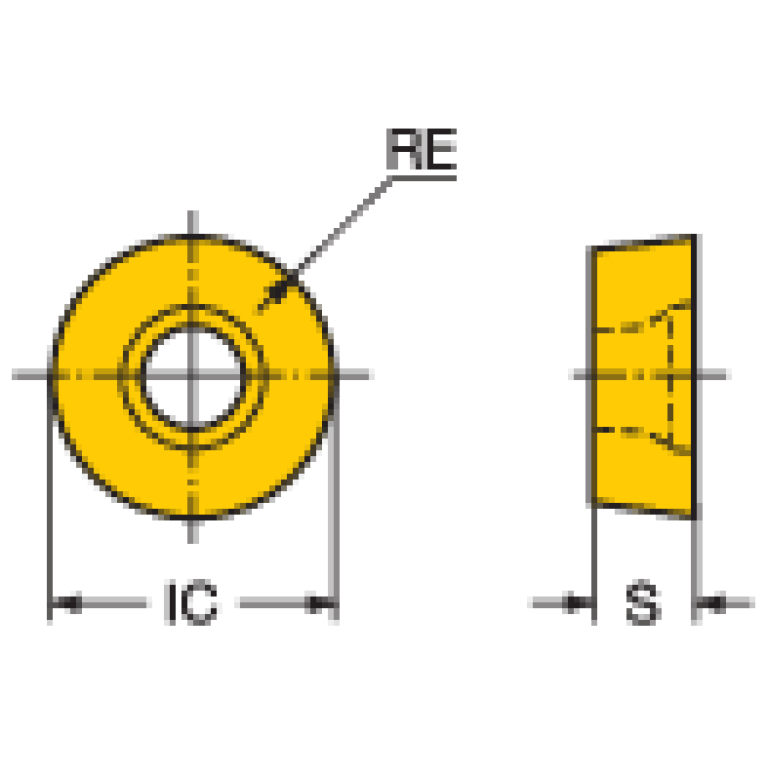

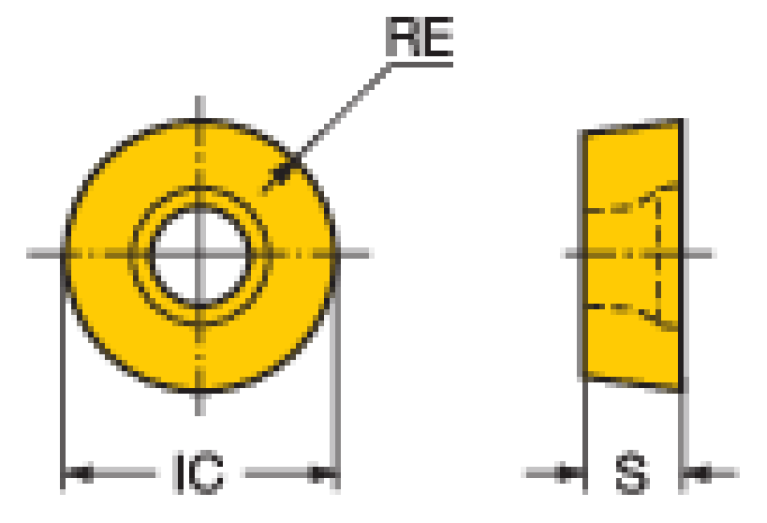

IC (Inscribed circle diameter)

19.05 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC1906003NB$$00

LOC-03 ISO

ISO$RC1906003NB$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1906003N

M (M-dimension)

19.05 mm

Materials

K,N,S

MIID (Master insert identification)

RCHT190600 H13A

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

STDDES (Standard designation)

RCHT190600

STDDESAnsi (Standard designation ANSI)

RCHT640

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.019 kg
