Главная Инструменты 201-10 - Round insert RCHT 13 04 00-ML 2040

RCHT 13 04 00-ML 2040

Артикул: 5739998

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

F - Sharpedged

COATN (Coating)

CVD TiCrN+Al2O3+TiN

D1 (Fixing hole diameter)

4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RC1204003N

GRDMFG (Grade manufacturers designation)

2040

GRDPRIO (Standard designation of the grade main application)

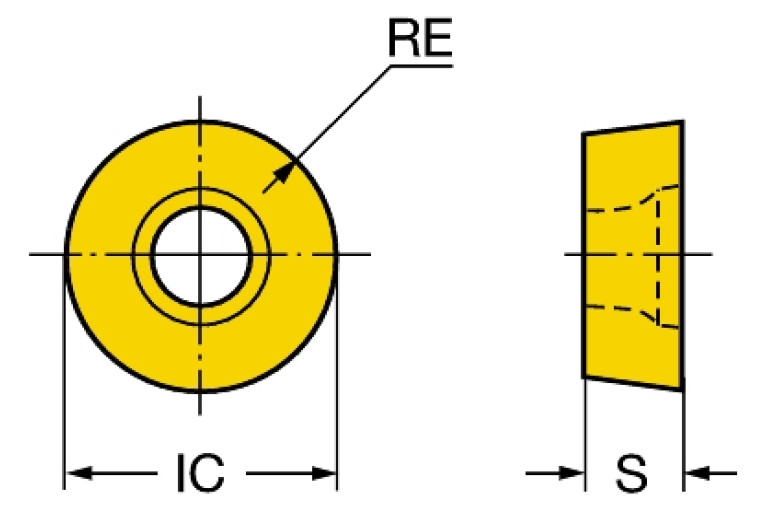

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC1204003NB$$00

LOC-03 ISO

ISO$RC1204003NB$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204003N

M (M-dimension)

12.7 mm

Materials

P,M,S

MIID (Master insert identification)

RCHT130400 2040

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

RCHT130400

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.006 kg
