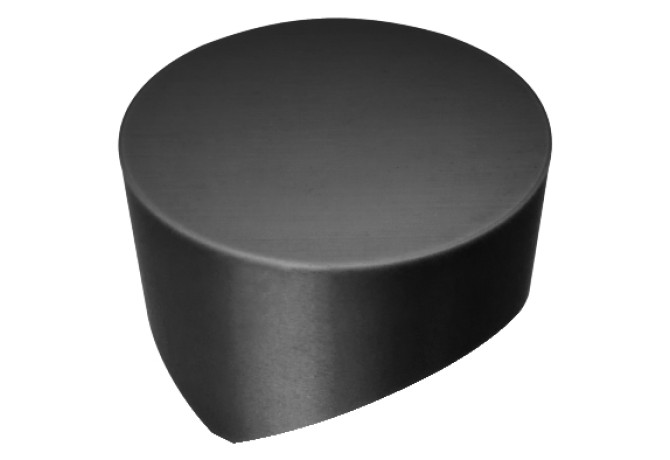

RCGX251200T20015 650
RCGX251200T20015 650
Артикул:
5740343
В наличии
0 ₽
Характеристики

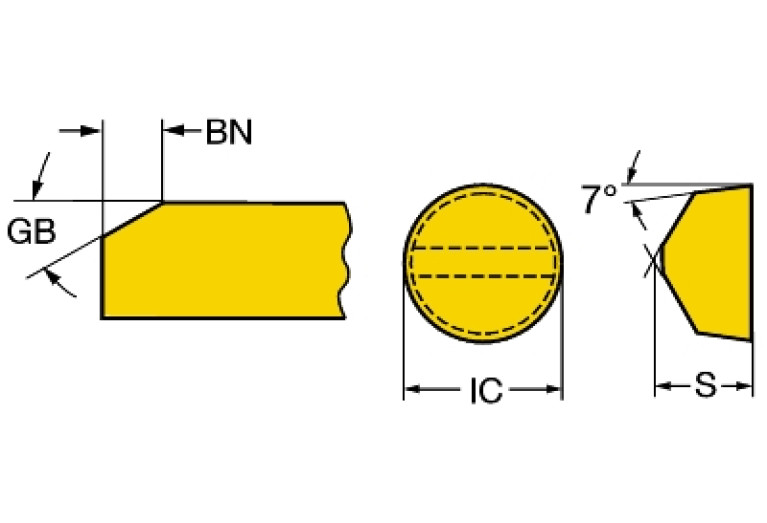

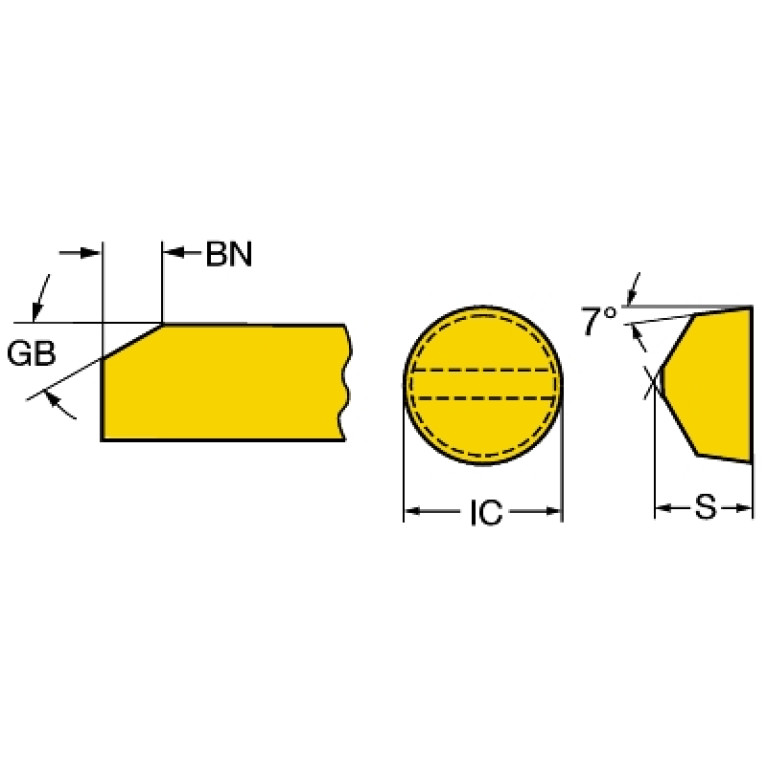

AN (Clearance angle major)
7 Degree
BN (Face land width)
2 mm
CB (Chip breaker face count)
0 - Without chip breaker
CECC (Cutting edge condition code)
T - Chamfered
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
RC2512006N
GB (Face land angle)
15 Degree
GRDMFG (Grade manufacturers designation)
650
GRDPRIO (Standard designation of the grade main application)
CM
IC (Inscribed circle diameter)
25.4 mm
IFS (Insert mounting style code)
6 - Prismatic clamping, convex
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$RC2512006NA$$00
LOC-03 ISO
ISO$RC2512006NA$$00
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC2512006N
M (M-dimension)
25.4 mm
Materials
K,S,H
MIID (Master insert identification)
RCGX251200 650
S (Insert thickness)
12 mm
S1 (Insert thickness total)
12 mm
STDDES (Standard designation)
RCGX251200
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.02 kg
