Главная Инструменты 201-10 - Round insert RCGX120700K15015 650

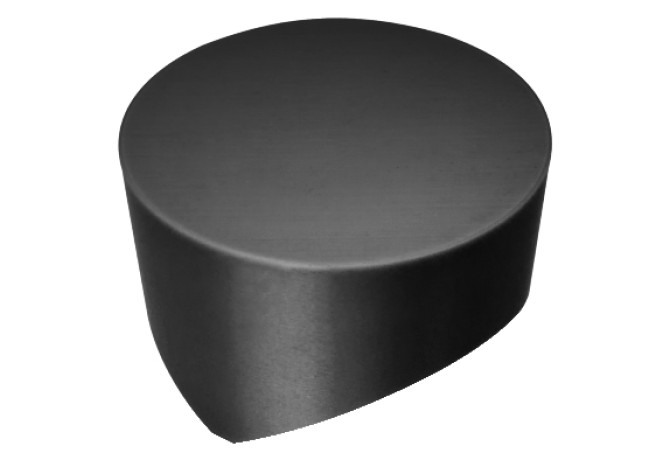

RCGX120700K15015 650

Артикул: 5740352

В наличии

0 ₽

В корзину

Описание

Характеристики

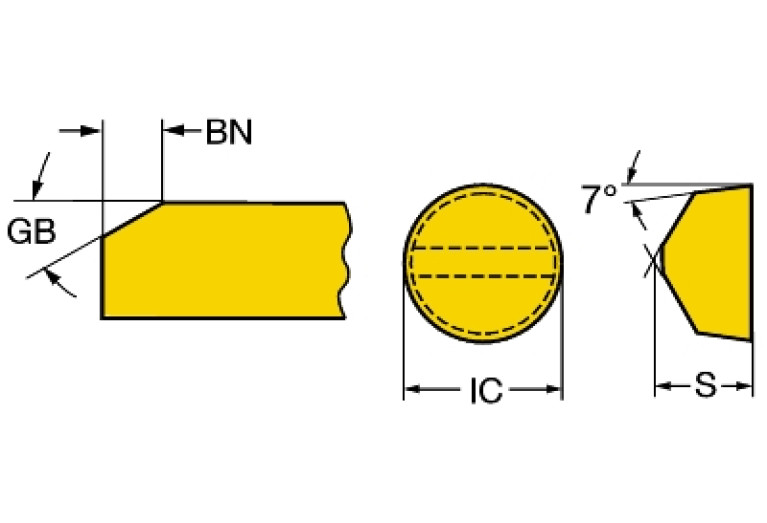

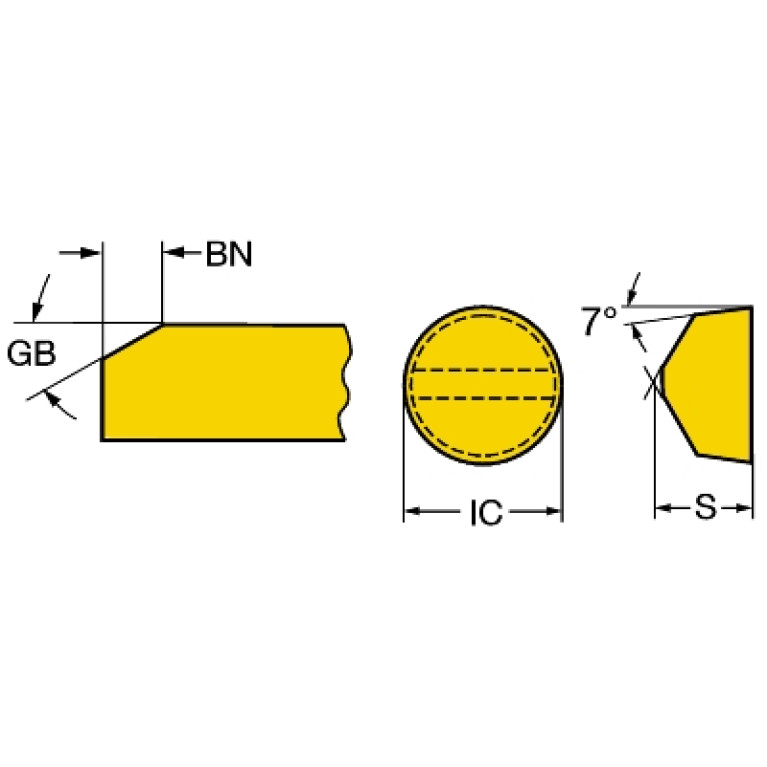

AN (Clearance angle major)

7 Degree

BN (Face land width)

1.5 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

K - Doublechamfered

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RC1207006N

GB (Face land angle)

15 Degree

GRDMFG (Grade manufacturers designation)

650

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

6 - Prismatic clamping, convex

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC1207006NA$$00

LOC-03 ISO

ISO$RC1207006NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1207006N

M (M-dimension)

12.7 mm

Materials

K,S,H

MIID (Master insert identification)

RCGX120700 650

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

STDDES (Standard designation)

RCGX120700

STDDESAnsi (Standard designation ANSI)

RCGX450

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.003 kg
