RCGX090700T01020 6230
RCGX090700T01020 6230
Артикул:
7413939
В наличии
0 ₽
Характеристики

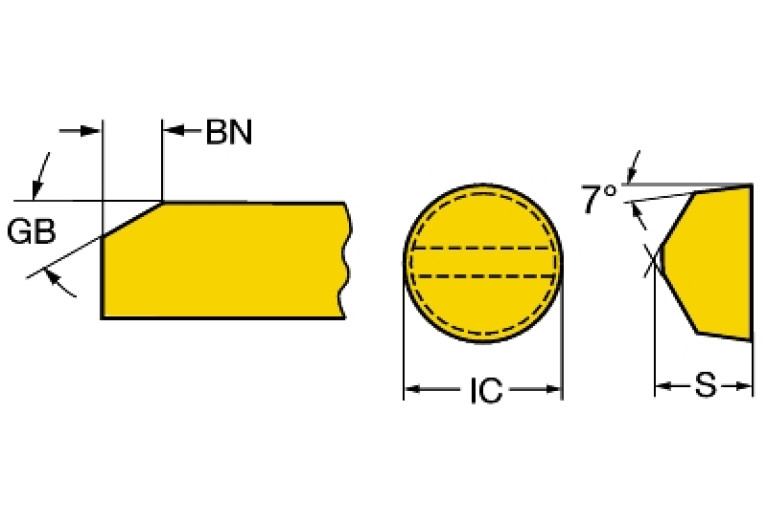

AN (Clearance angle major)
7 Degree
BN (Face land width)
0.1 mm
CB (Chip breaker face count)
0 - Without chip breaker
CECC (Cutting edge condition code)
T - Chamfered
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
RC0907006N
GAN (Insert rake angle)
0 Degree
GB (Face land angle)
20 Degree
GRDMFG (Grade manufacturers designation)
6230
GRDPRIO (Standard designation of the grade main application)
CA
IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
6 - Prismatic clamping, convex
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$RC0907006NA$$00
LOC-03 ISO
ISO$RC0907006NA$$00
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC0907006N
M (M-dimension)
9.525 mm
Materials
S
MIID (Master insert identification)
RCGX090700 6230
S (Insert thickness)
7.938 mm
S1 (Insert thickness total)
7.938 mm
STDDES (Standard designation)
RCGX090700
STDDESAnsi (Standard designation ANSI)
RCGX350
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.004 kg
