Главная Инструменты 201-10 - Round insert RCGX060600T01020 670

RCGX060600T01020 670

Артикул: 5740086

В наличии

0 ₽

В корзину

Описание

Характеристики

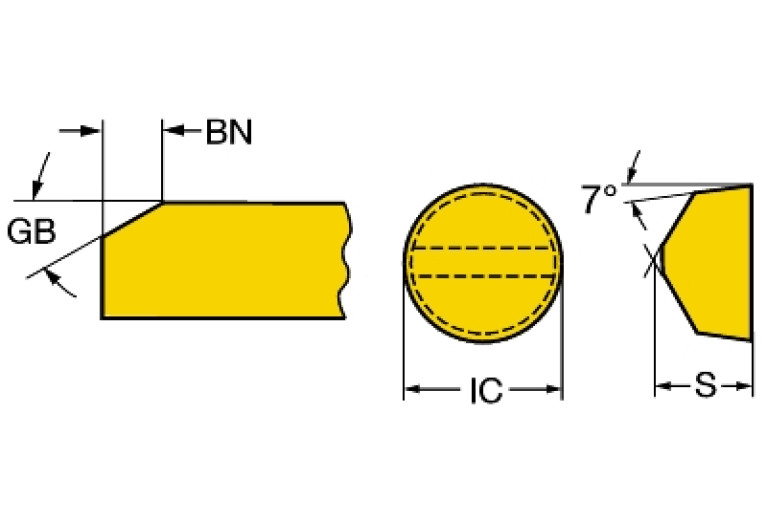

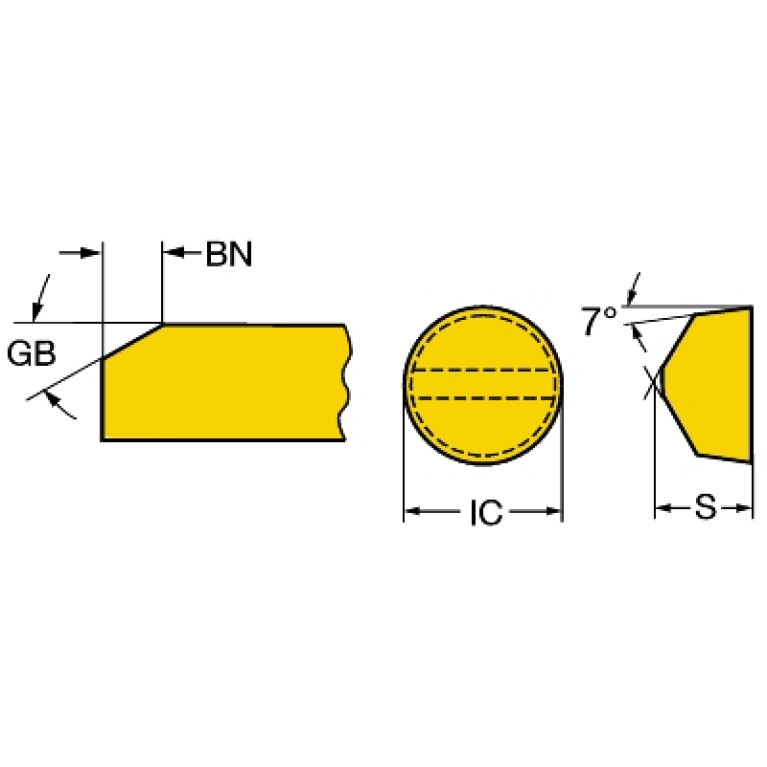

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RC0606006N

GAN (Insert rake angle)

0 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

670

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

6 - Prismatic clamping, convex

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC0606006NA$$00

LOC-03 ISO

ISO$RC0606006NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0606006N

M (M-dimension)

6.35 mm

Materials

S,H

MIID (Master insert identification)

RCGX060600 670

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

STDDES (Standard designation)

RCGX060600

STDDESAnsi (Standard designation ANSI)

RCGX240

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
