Главная Инструменты 201-10 - Round insert RCGT 12 04 MP-L3 H13A

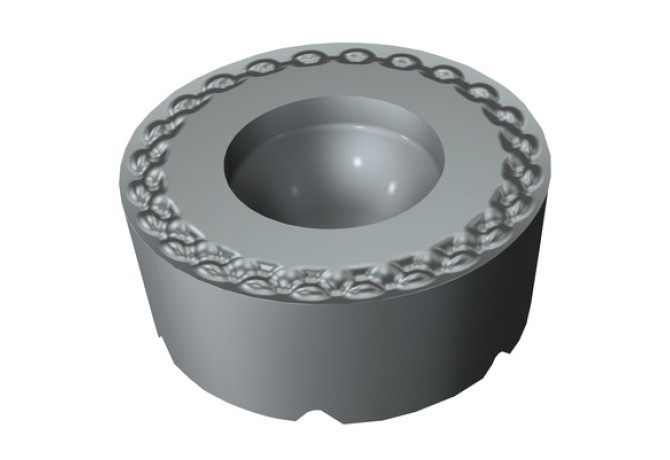

RCGT 12 04 MP-L3 H13A

Артикул: 8267951

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

RC1204M03N

GRDMFG (Grade manufacturers designation)

H13A

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$RC1204M03NBZ$M0

LOC-03 ISO

ISO$RC1204M03NBZ$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204M03N

M (M-dimension)

12 mm

Materials

P,M,K,N,S

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.006 kg
