R300-2570M-PH 1010
R300-2570M-PH 1010
Артикул:
5744569
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
15 Degree
CBMD (Chip breaker manufacturers designation)
PH
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TIALN
D1 (Fixing hole diameter)
7.6 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SV-MD257000
GRDMFG (Grade manufacturers designation)
1010
GRDPRIO (Standard designation of the grade main application)
HC

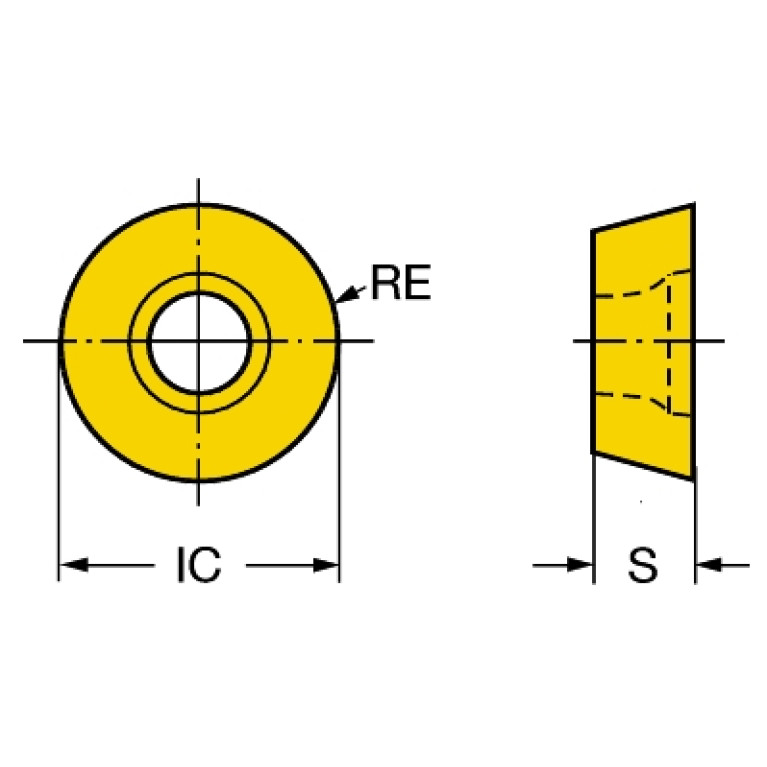

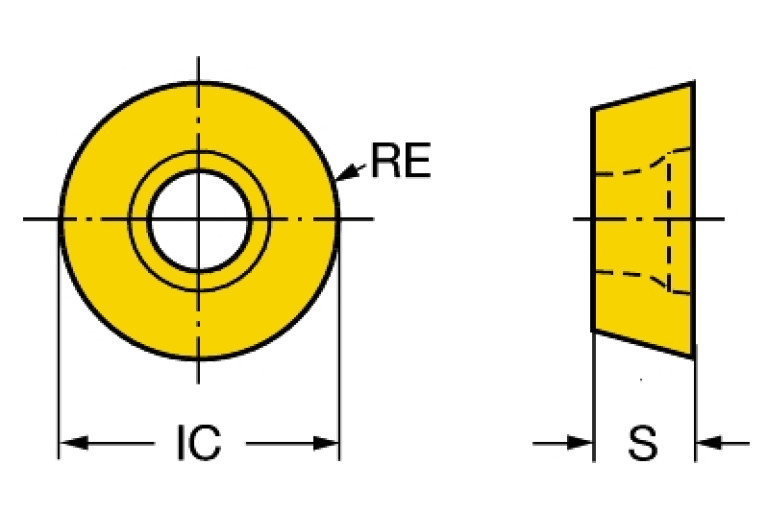

IC (Inscribed circle diameter)
25.4 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MD2570003$B$$00
LOC-03 ISO
SV$$MD2570003$B$$00
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MD257000
M (M-dimension)
25.4 mm
Materials
K,H
S (Insert thickness)
7.94 mm
S1 (Insert thickness total)
7.94 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.038 kg
