R300-2060E-PM 1030

Артикул: 5744511

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

15 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN

D1 (Fixing hole diameter)

7 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-MD206000

GRDMFG (Grade manufacturers designation)

1030

GRDPRIO (Standard designation of the grade main application)

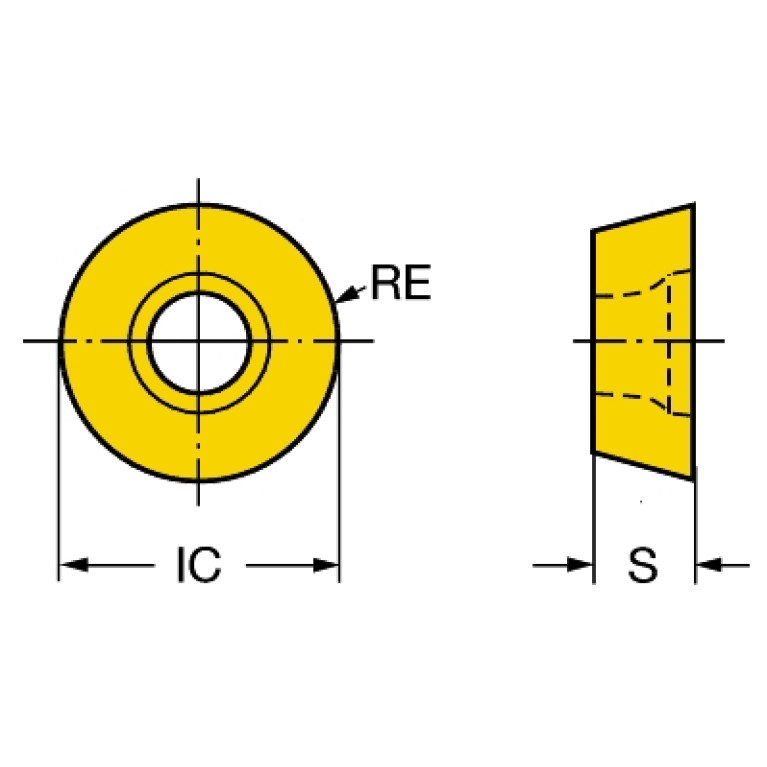

IC (Inscribed circle diameter)

20 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MD2060M03$B$$M0

LOC-03 ISO

SV$$MD2060M03$B$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MD206000

M (M-dimension)

20 mm

Materials

P,M,N,S,H

S (Insert thickness)

6.48 mm

S1 (Insert thickness total)

6.48 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.018 kg
