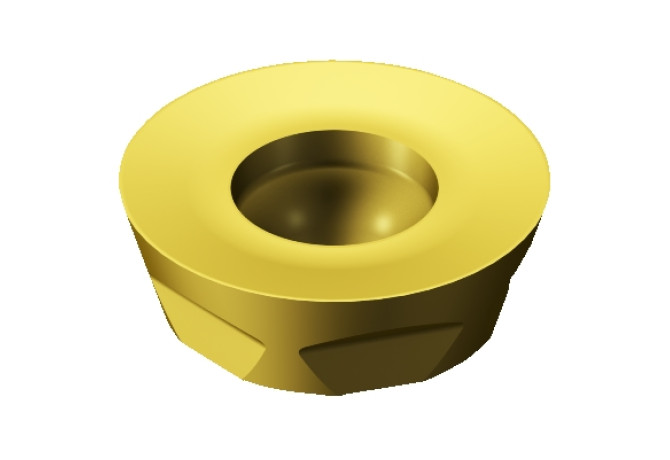

R300-2060E-ML 2030
R300-2060E-ML 2030
Артикул:
5744537
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
15 Degree
CBMD (Chip breaker manufacturers designation)
ML
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
PVD TIALN+TIN
D1 (Fixing hole diameter)
7 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SV-MD206000
GRDMFG (Grade manufacturers designation)
2030
GRDPRIO (Standard designation of the grade main application)
HC

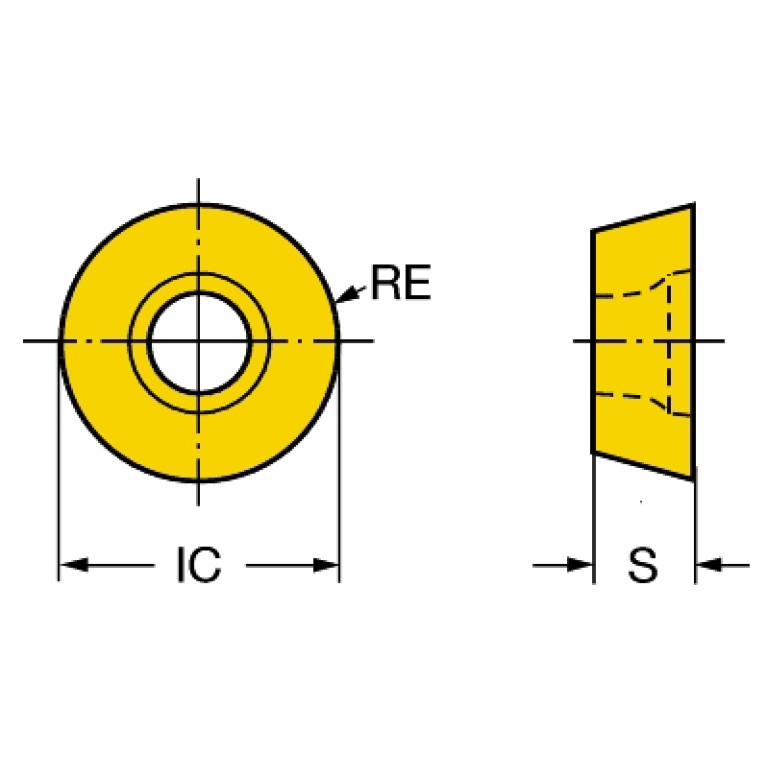

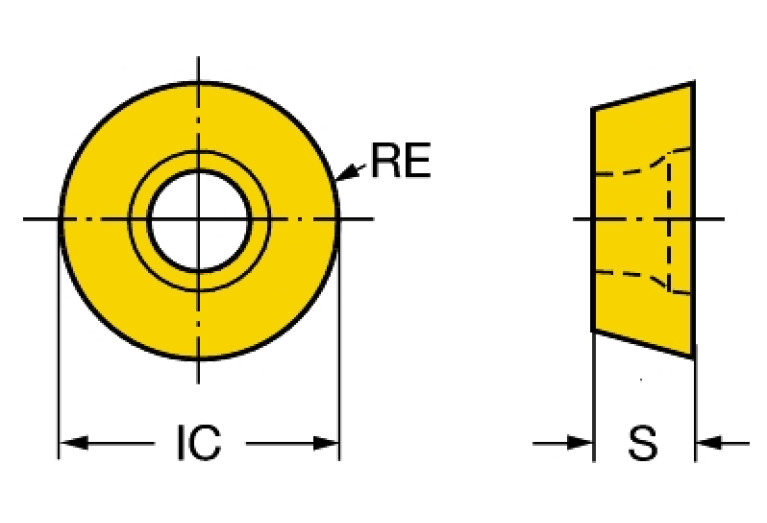

IC (Inscribed circle diameter)
20 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MD2060M03$B$$M0
LOC-03 ISO
SV$$MD2060M03$B$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MD206000
M (M-dimension)
20 mm
Materials
P,M,S
S (Insert thickness)
6.48 mm
S1 (Insert thickness total)
6.48 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
E
Working process
No working processes available
WT (Weight of item)
0.016 kg
