Главная Инструменты 201-10 - Round insert R300-1648M-PM 1230

R300-1648M-PM 1230

Артикул: 8519377

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

15 Degree

BN (Face land width)

0.2 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

TiAlSiN

D1 (Fixing hole diameter)

5.7 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

GAN (Insert rake angle)

0 Degree

GB (Face land angle)

10 Degree

GRDMFG (Grade manufacturers designation)

1230

GRDPRIO (Standard designation of the grade main application)

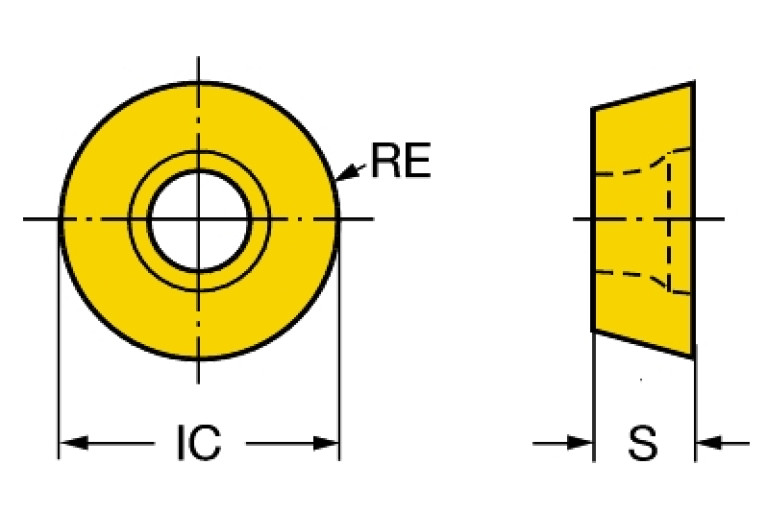

IC (Inscribed circle diameter)

16 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MD1648M03$B$$M0

LOC-03 ISO

SV$$MD1648M03$B$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

M (M-dimension)

16 mm

Materials

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

K - Cold formed

Working process

No working processes available

WT (Weight of item)

0.009 kg
