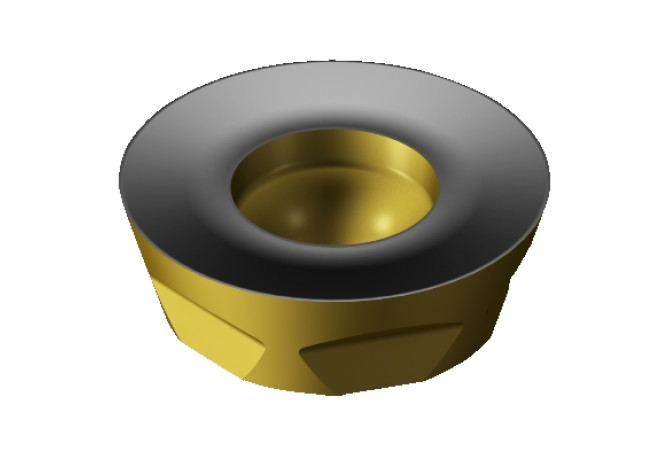

R300-1648M-KH 3330
R300-1648M-KH 3330
Артикул:
6428037
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
15 Degree
CBMD (Chip breaker manufacturers designation)
KH
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
5.7 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-MD164800
GRDMFG (Grade manufacturers designation)
3330
GRDPRIO (Standard designation of the grade main application)
HC

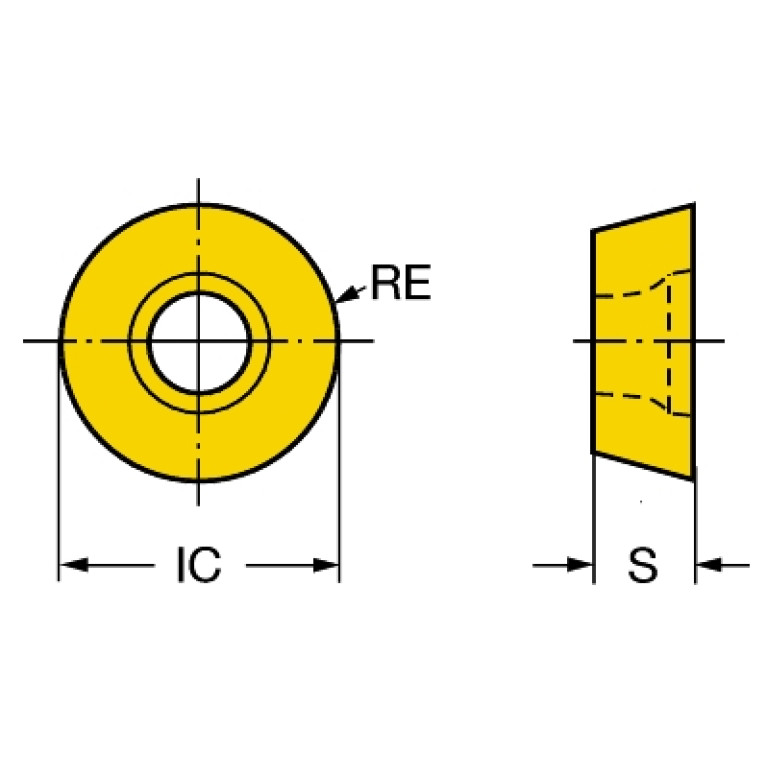

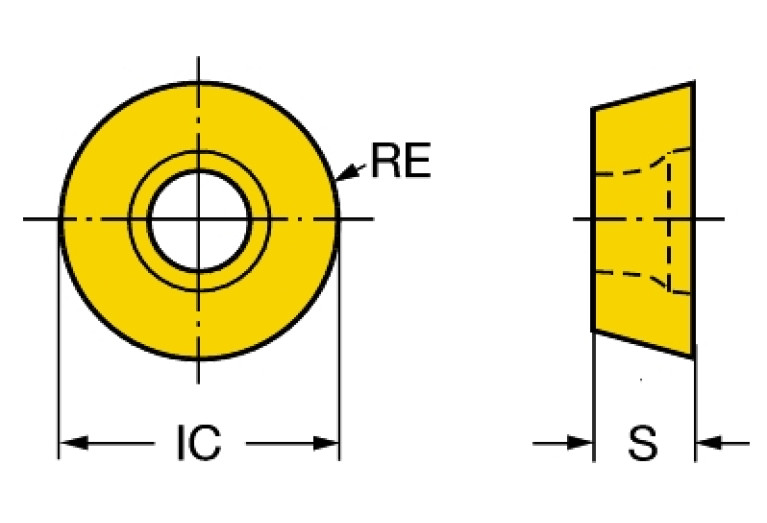

IC (Inscribed circle diameter)
16 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MD1648M03$B$$M0
LOC-03 ISO
SV$$MD1648M03$B$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MD164800
M (M-dimension)
16 mm
Materials
K
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
K - Cold formed
Working process
No working processes available
WT (Weight of item)
0.009 kg
