Главная Инструменты 201-10 - Round insert R300-1340M-PM 4330

R300-1340M-PM 4330

Артикул: 7564588

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

15 Degree

BN (Face land width)

0.135 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

4.1 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-MD134000

GAN (Insert rake angle)

20 Degree

GRDMFG (Grade manufacturers designation)

4330

GRDPRIO (Standard designation of the grade main application)

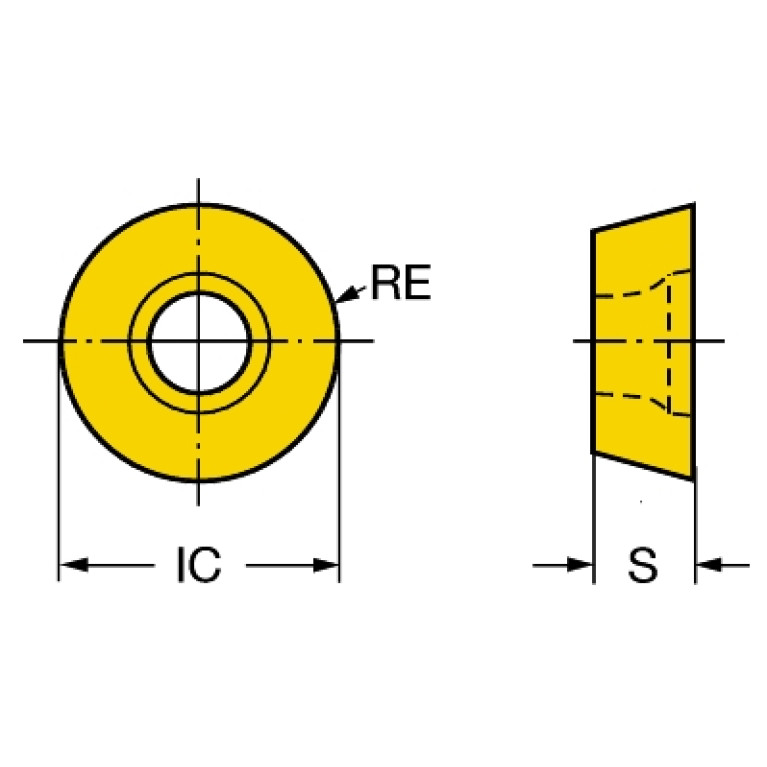

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MD1340003$B$$00

LOC-03 ISO

SV$$MD1340003$B$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MD134000

M (M-dimension)

12.7 mm

Materials

P,K

S (Insert thickness)

3.969 mm

S1 (Insert thickness total)

3.969 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

K - Cold formed

Working process

No working processes available

WT (Weight of item)

0.004 kg
